Figure 3
From: The orientation and stability of the GPCR-Arrestin complex in a lipid bilayer

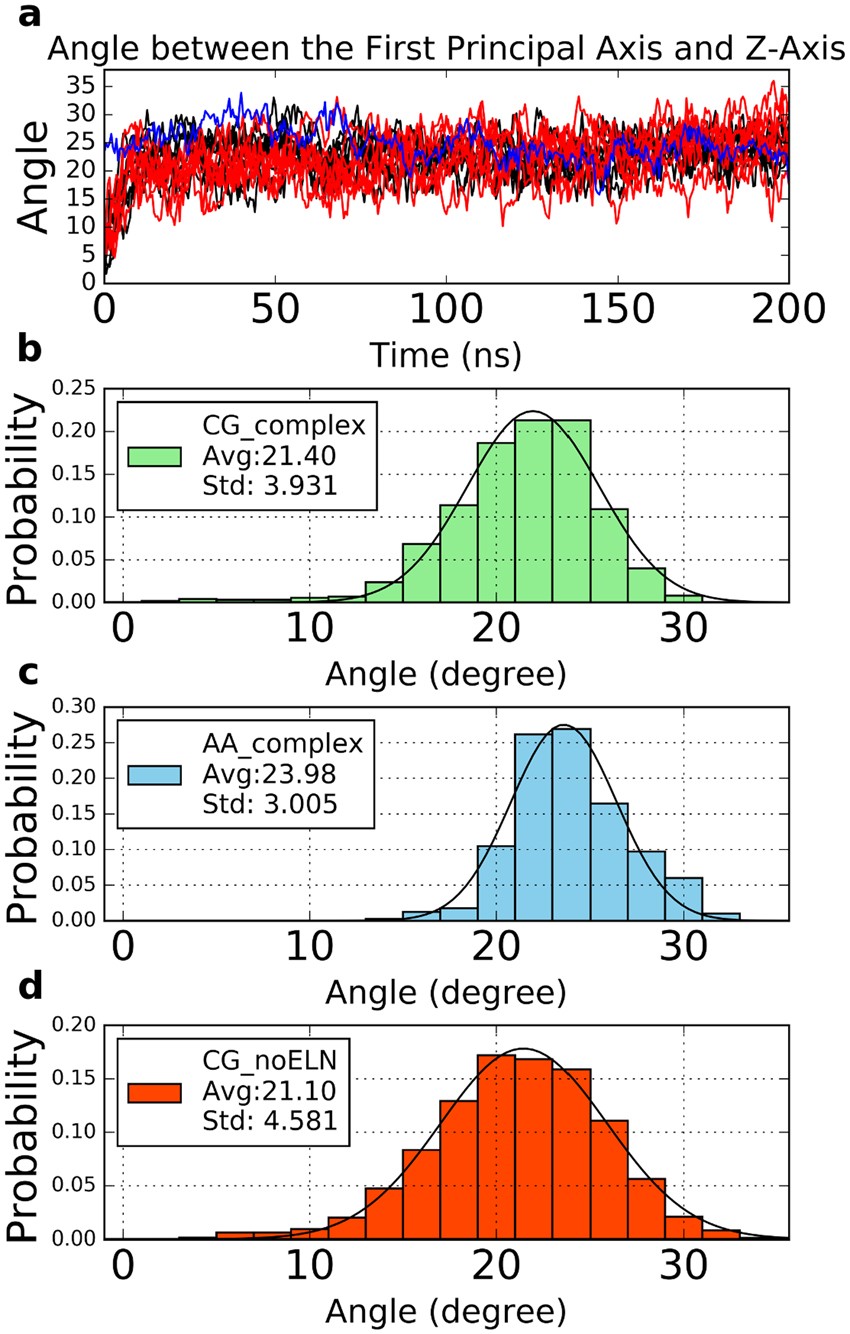

The orientation of the complex orientation in a POPC bilayer. The orientation of the complex is represented by the angle between the first principal axis of the rhodopsin-arrestin complex structure and the Z axis of the simulation box. (a) All the data from ten CG complex trajectories were plotted with black lines. Data from the ten CG complex without ELN were plotted with red lines. Blue line indicates the results from the AA MD simulation. (b–d) The angle probability distribution of the CG complex, AA complex and CG complex without ELN in MD, respectively.
