Figure 2

From: Cascaded gain-switching in the mid-infrared region

Figure 2

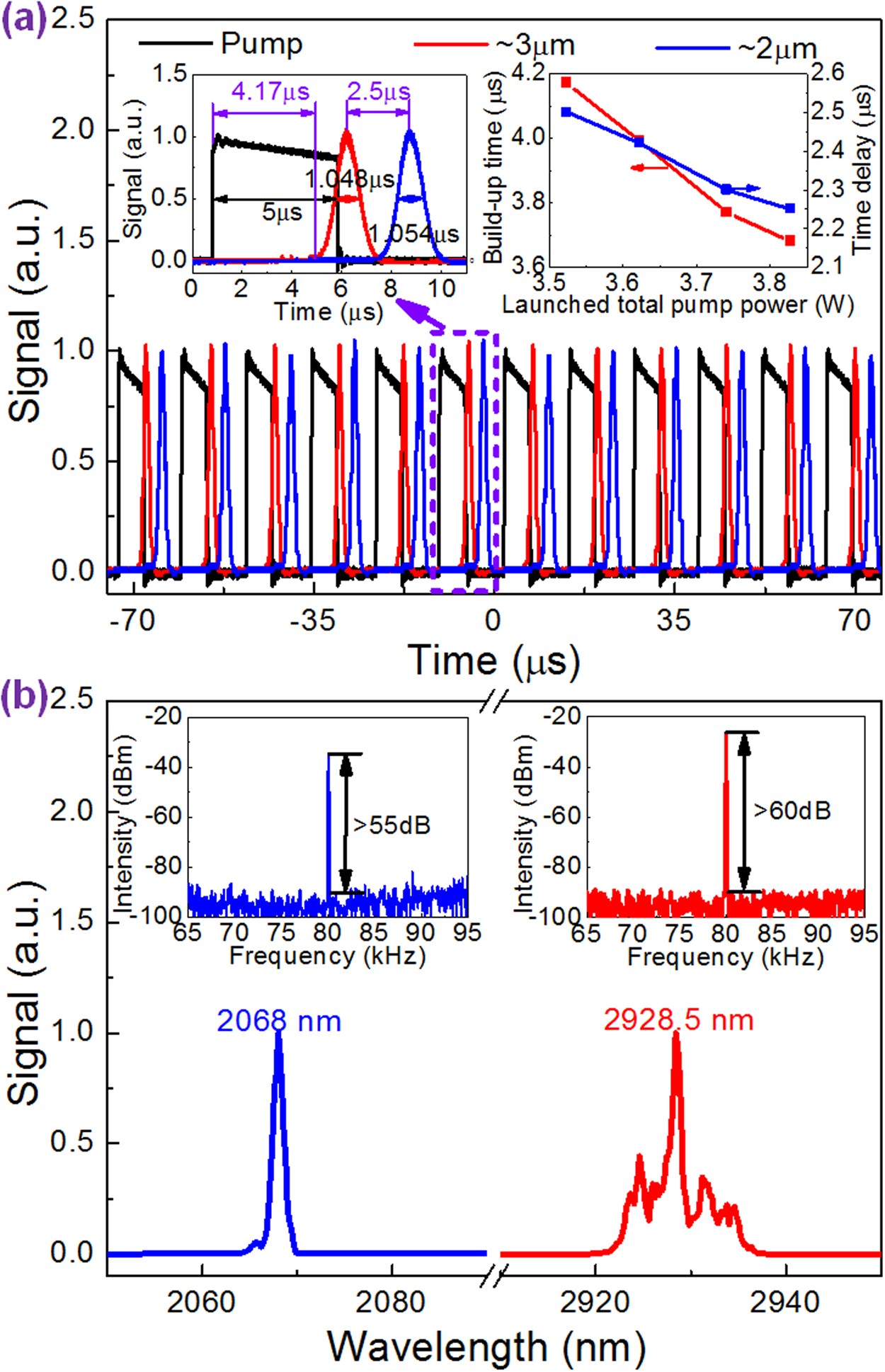

The output characteristics of “1-1” state. (a) Pulse trains and single pulse waveforms (left inset) at the LTPP of 3.52 W (LCWPP: 1.94 W, LPPP: 1.58 W), and build-up time and time delay versus the LTPP (right inset); (b) Optical and RF (insets) spectra at the LTPP of 3.83 W (LCWPP: 2.03 W, LPPP: 1.8 W).
