Figure 7
From: Study of THz-Plasmon hybridization of a loop Yagi-Uda absorber

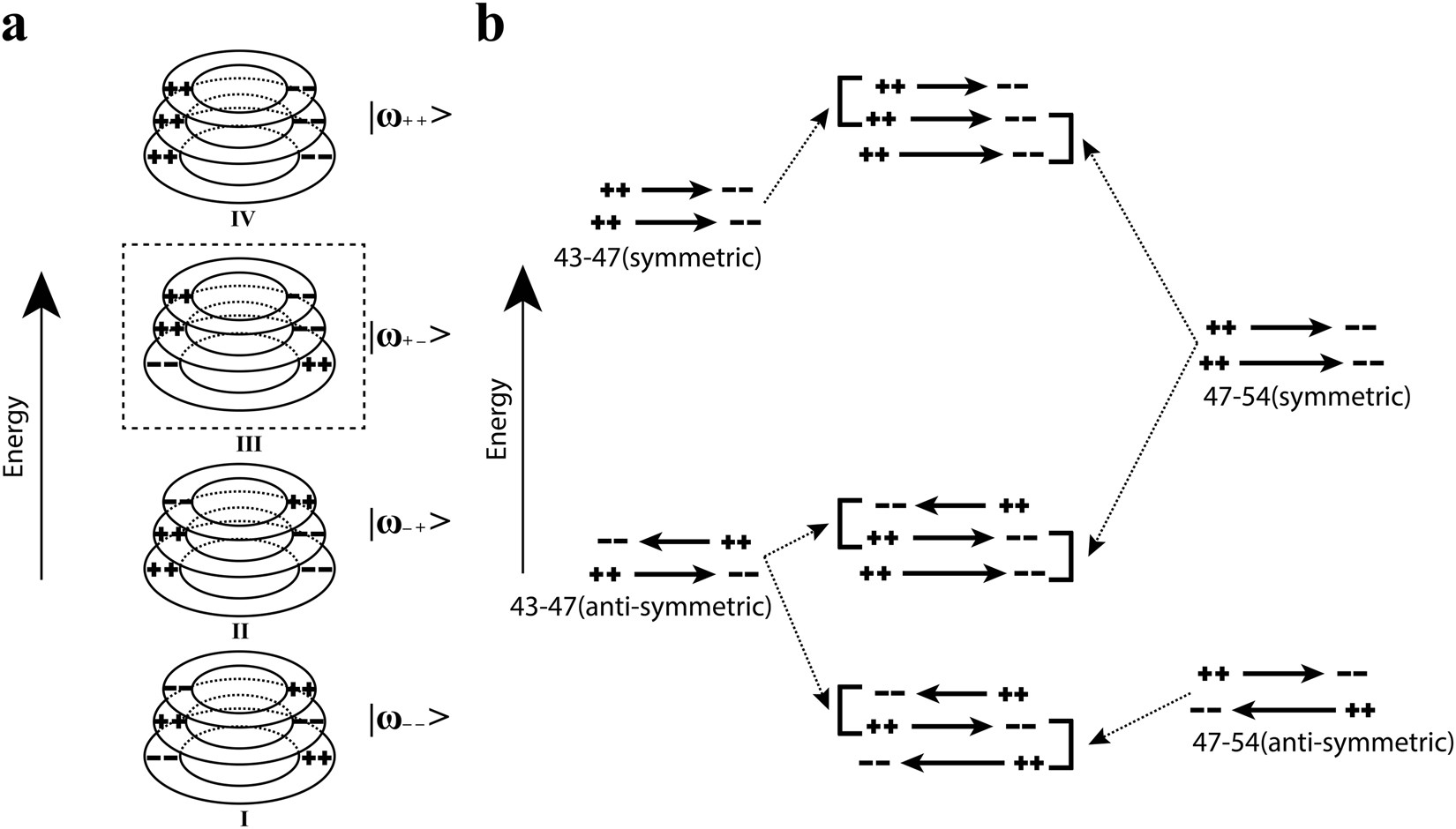

(a) Hybridized modes of three stacked rings. (b) Each mode consists of two sub-hybridized modes. Each of the hybridized modes is labelled based on which of the two rings (of radius 43, 47 and 54 μm) are contributing.
