Figure 2
From: Lagrangian Statistics and Intermittency in Gulf of Mexico

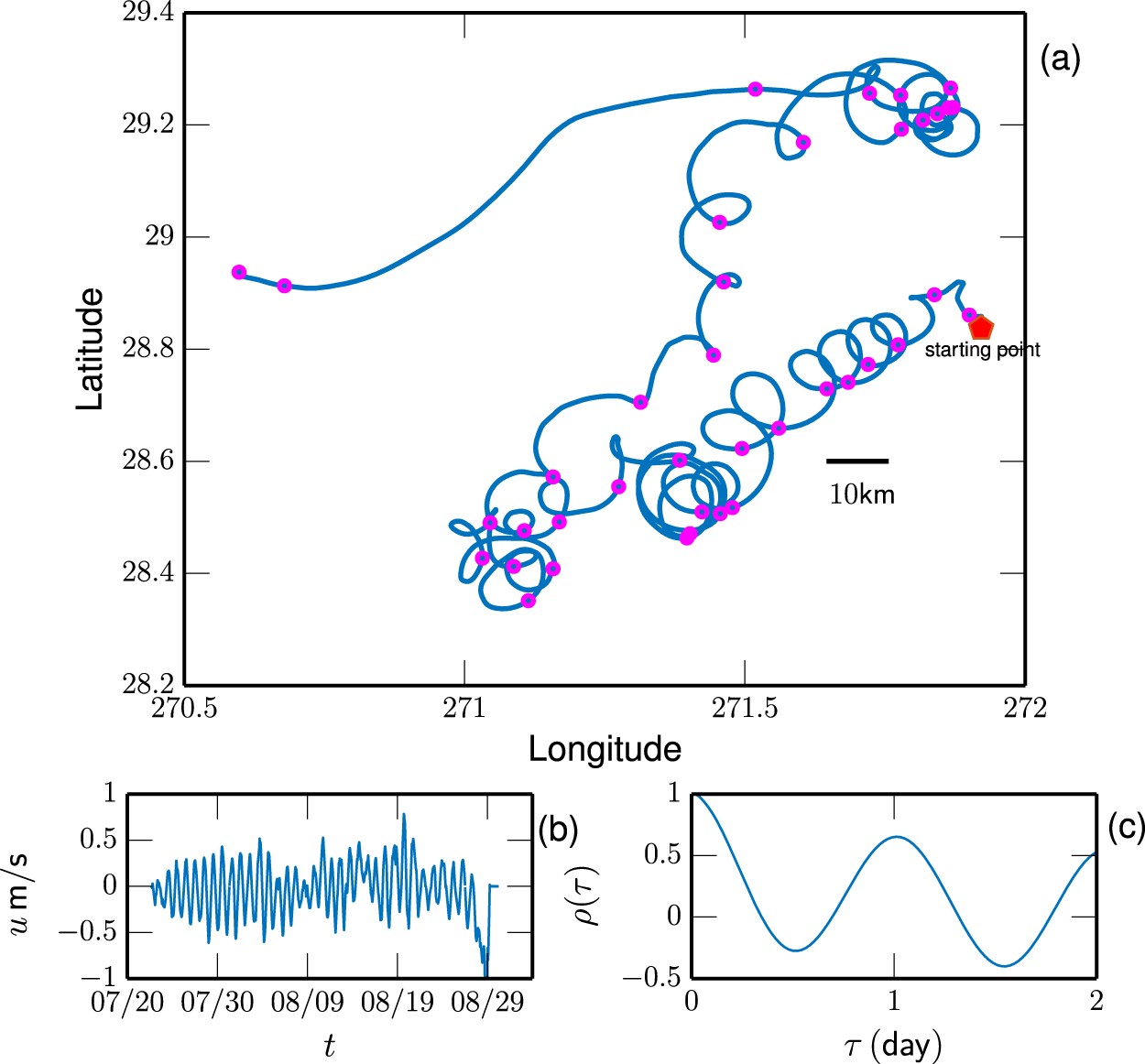

(a) Illustration of a 38 day trajectory of Lagrangian drifter on the time period 22th Jul. to 30th Aug. 2012. The 1 day time interval is indicated by symbols. (b) The corresponding Lagrangian velocity. (c) The measured Lagrangian correlation function ρ(τ), showing a strong daily cycle due to the tide. This figure is prepared using a Python package, namely Matplotlib.
