Figure 5
From: Lagrangian Statistics and Intermittency in Gulf of Mexico

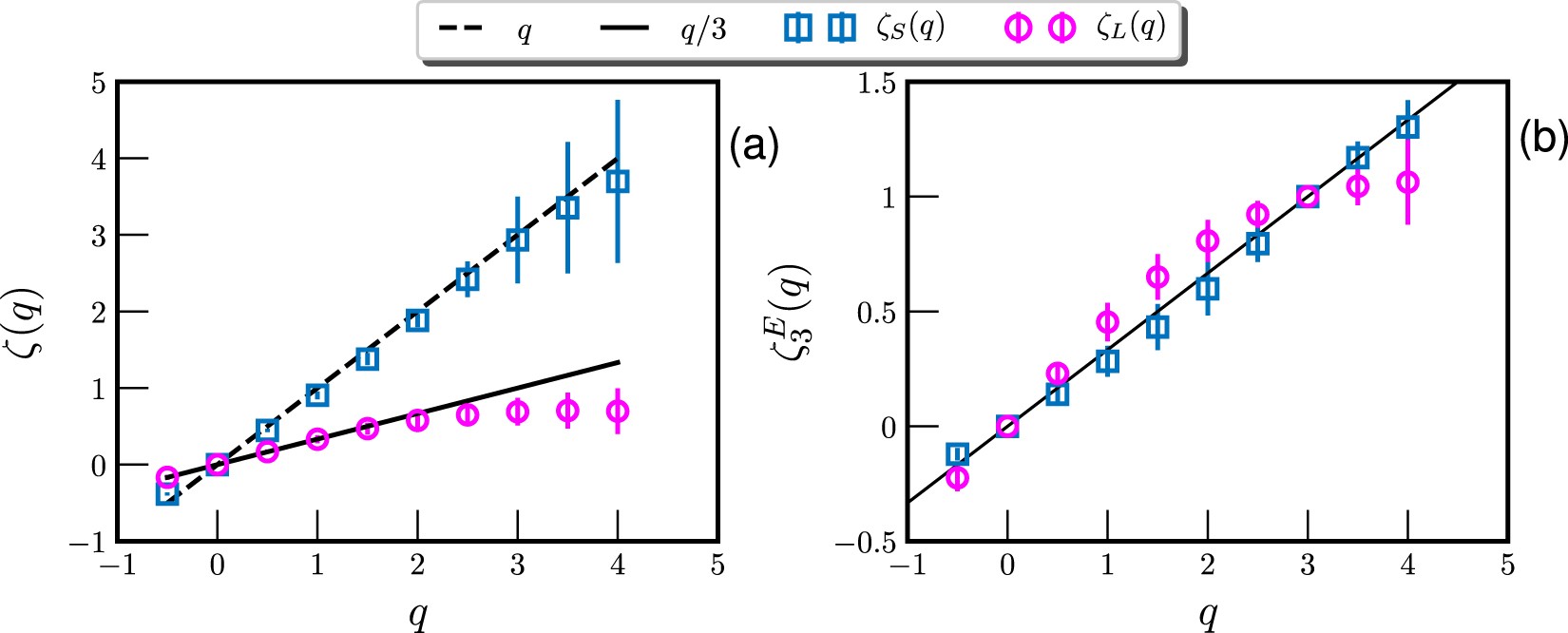

(a) Measured Hilbert-based scaling exponent \({\zeta }_{S}(q)\) (□) and \({\zeta }_{L}(q)\) (○) respectively for high and low-frequency scaling ranges. For reference, \(\zeta (q)=q\mathrm{/3}\) and \(\zeta (q)=q\) are shown as solid and dashed lines. (b) The relative scaling exponent \({\zeta }_{3}^{E}(q)\) by fitting the measured \({ {\mathcal L} }_{q}(f)\) versus \({ {\mathcal L} }_{3}(f)\). This figure is prepared using a Python package, namely Matplotlib.
