Figure 2
From: Specific binding of a polymer chain to a sequence of surface receptors

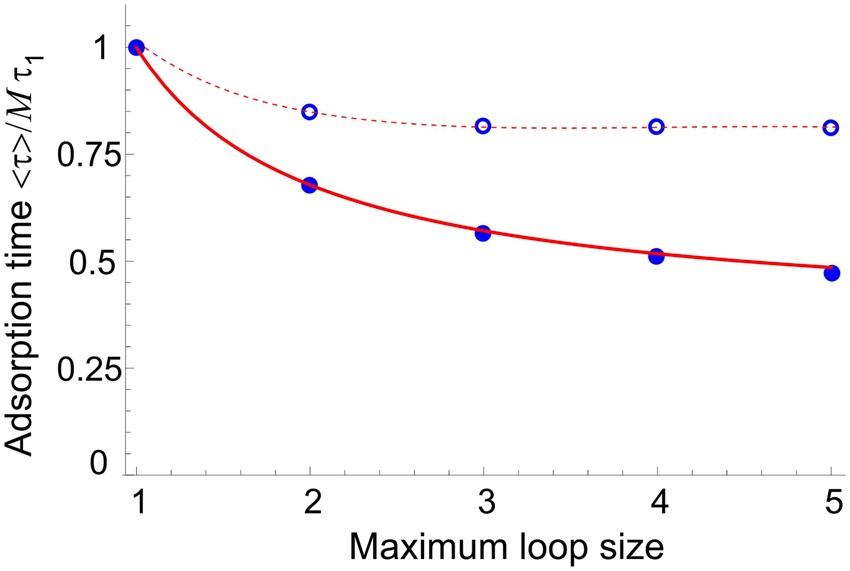

The plot of the (scaled) average adsorption time 〈τ(M)〉 for M = 20, when the multiple-step jumps (loops) are allowed. The x-axis indicates the largest jump allowed to accelerate the zipper binding. Filled symbols • represent the maximum effect, when the exponential entropic-penalty factor in τ 1a is equal to one (i.e. the distance Δa = 0); the open symbols ○ represent the reduced acceleration effect when Δa 2 = ΔNb 2: already an almost negligible deviation from a simple zipper time past the loop size = 2.
