Figure 4
From: A Wide Dynamic Range Polarization Sensing Long Wave Infrared Detector

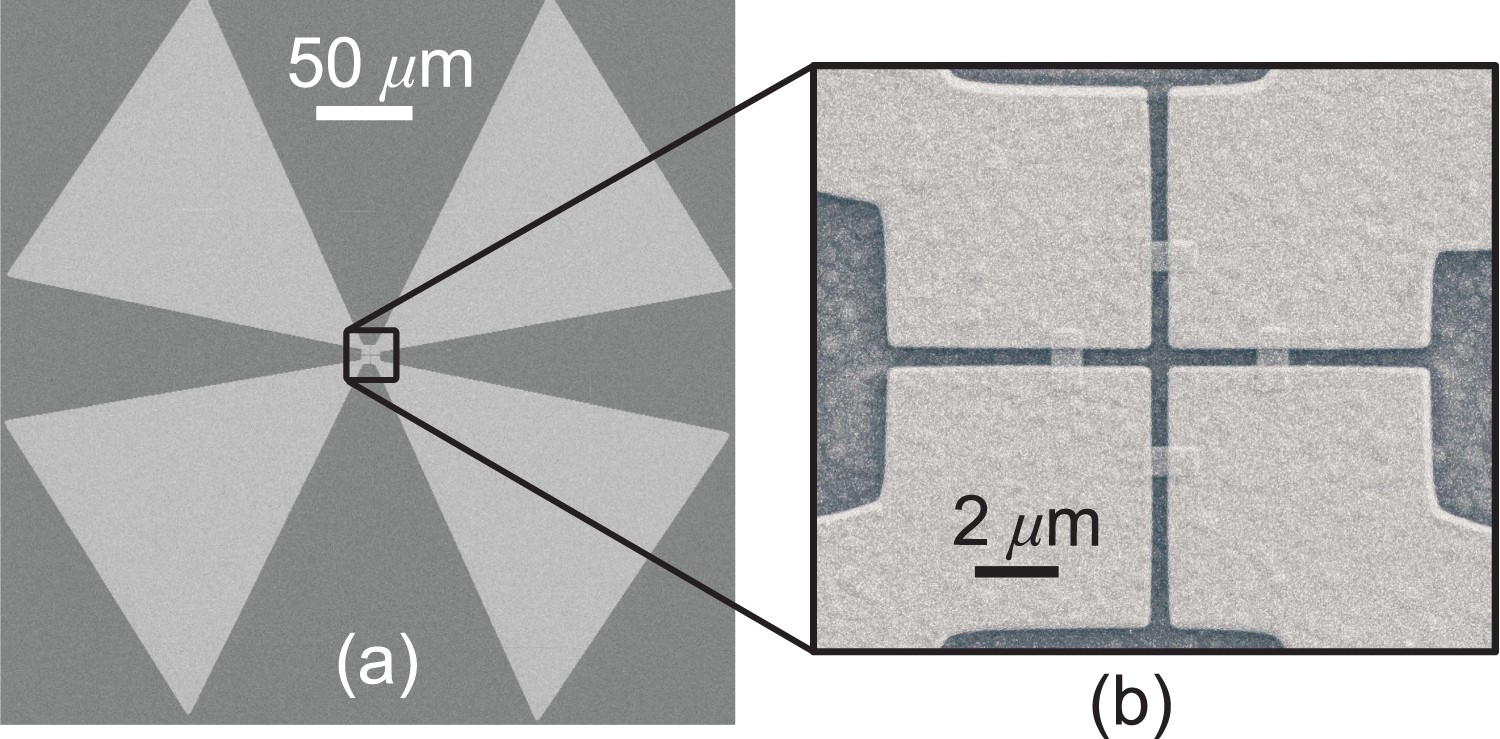

The scanning electron microscope (SEM) image of the fabricated prototype. (a) The detector is at the center of the figure which is connected to four large triangular pads that are used for the dc biasing of the bolometers. (b) The inset shows the magnified image of the slot antennas with four microbolometers.
