Figure 3
From: Cell Cycle Model System for Advancing Cancer Biomarker Research

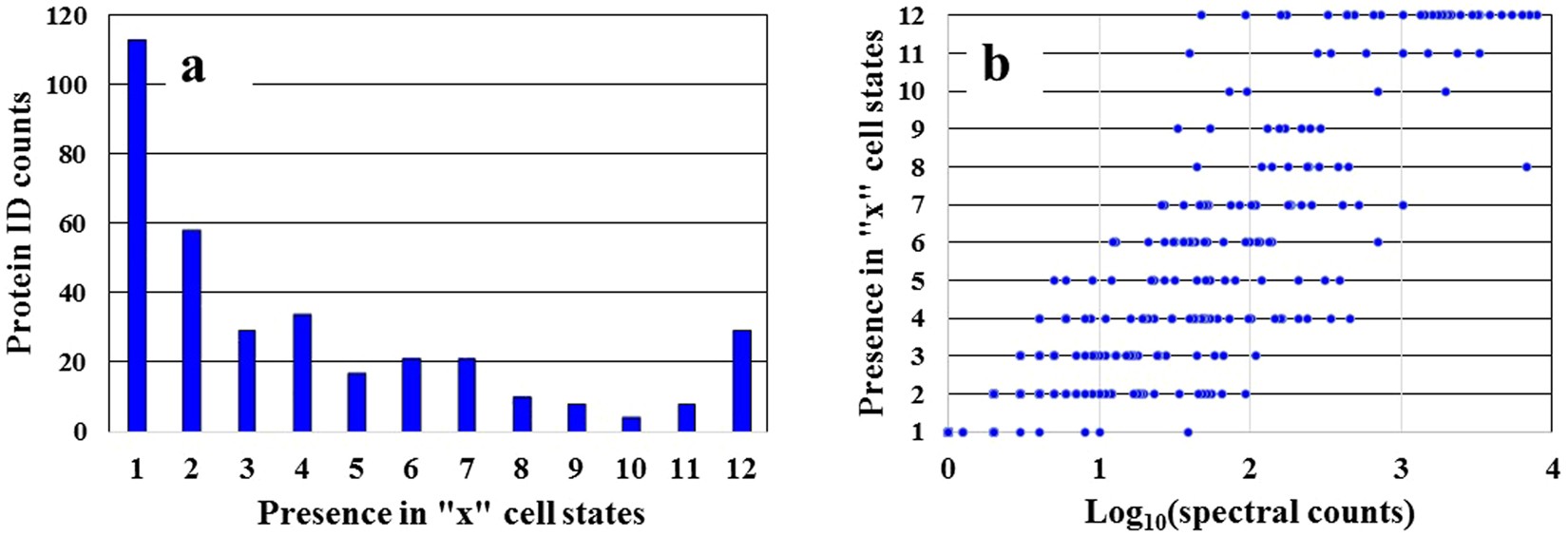

Charts displaying the detectability of cancer marker proteins in any number “x” of cell states. (a) Number of cancer marker proteins that could be identified in “x” cell states. (b) Detectability of cancer marker proteins in “x” cell states as a function of the log-transformed number of matching spectral counts (x = 1–12 cell states corresponding to the G1/S cell cycle stages and nuclear/cytoplasmic fractions generated from the MCF7, MCF10 and SKBR3 cells).
