From: Infrared actuation-induced simultaneous reconfiguration of surface color and morphology for soft robotics

Figure 2

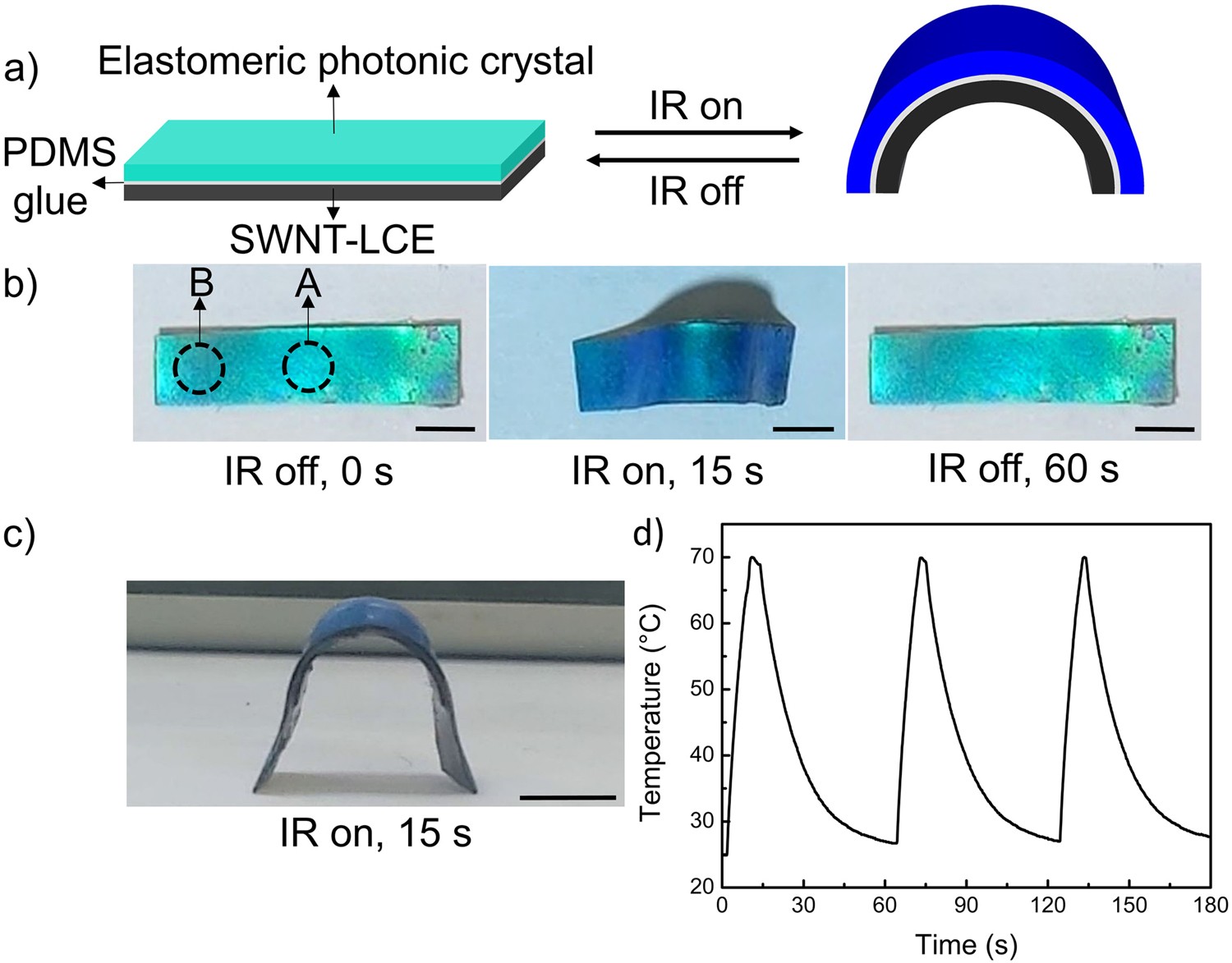

(a) Scheme of the laminated film undergoing bending towards the SWNT-LCE side upon IR irradiation. (b) Photographs (top view) of reversible bending and unbending of the laminated film in response to global IR irradiation. (c) Photograph (side view) of bent laminated film upon global IR irradiation. (d) Temperature of the laminated film as a function of on and off cycles of global IR irradiation. Scale bar: 5 mm.
