From: Enzymatic production of all fourteen partially acetylated chitosan tetramers using different chitin deacetylases acting in forward or reverse mode

Figure 1

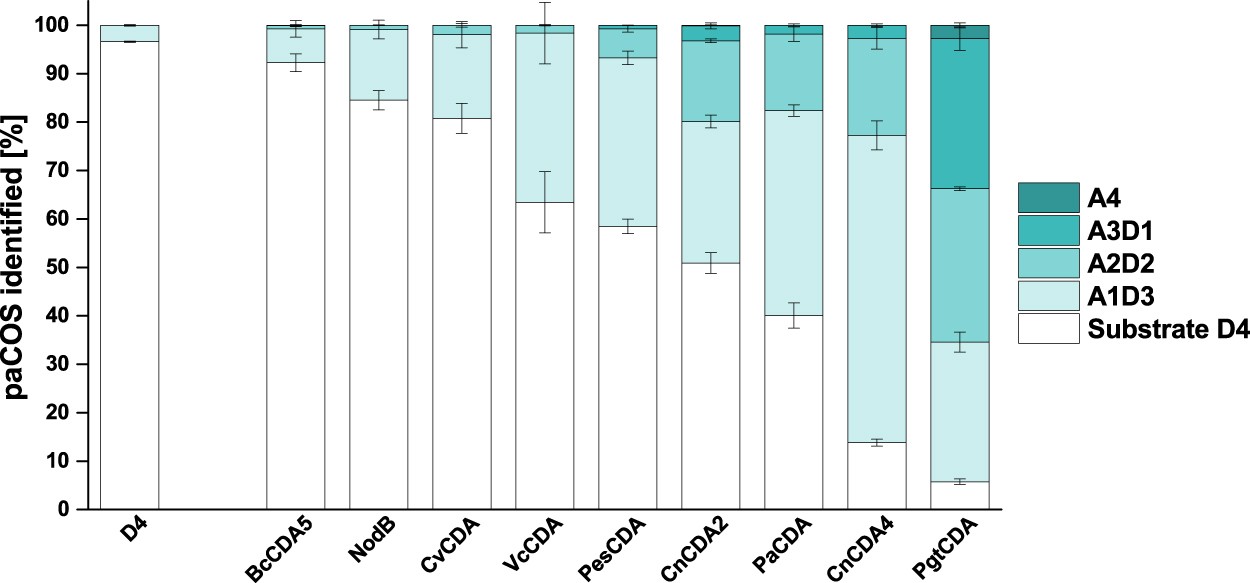

Relative amounts of different chito-oligosaccharides after performing enzymatic N-acetylation of the chitosan tetramer (D4, [GlcN]4) using different CDAs [BcCDA5, NodB, CvCDA, VcCDA, PesCDA, CnCDA2, PaCDA, CnCDA4, PgtCDA] for 98 h in 2 M sodium acetate buffer, pH 7. Data summarized in this figure have been generated by semi-quantitative HILIC-ESI-MS analysis and performed in triplicate; standard deviations are given by grey bars.
