Figure 3

From: Enzymatic production of all fourteen partially acetylated chitosan tetramers using different chitin deacetylases acting in forward or reverse mode

Figure 3

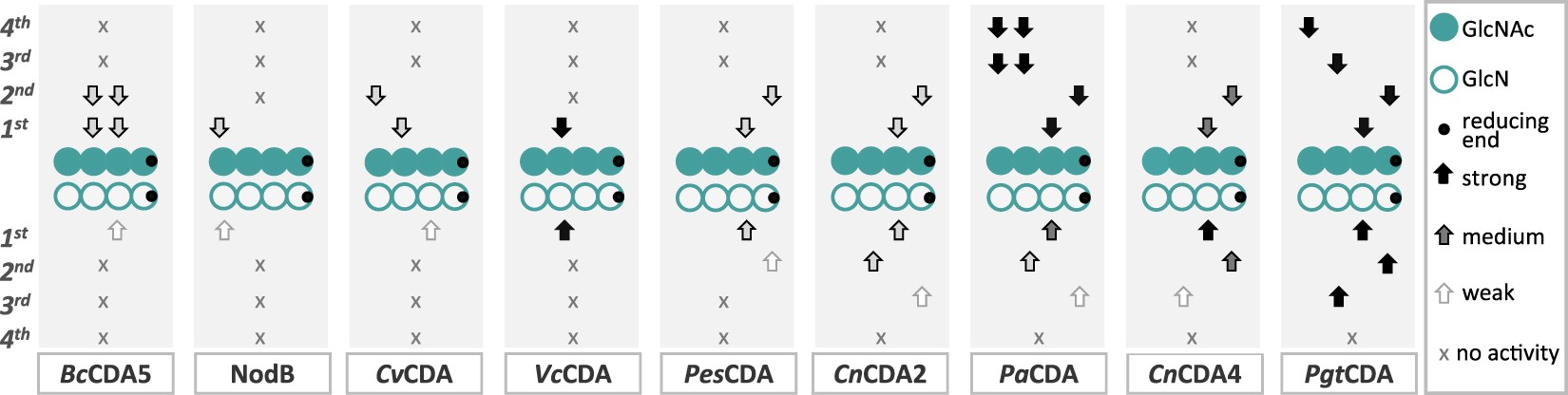

Mode of action of different CDAs (bacterial, viral, and fungal) on the chitin tetramer (A4, [GlcNAc]4, filled circles) shown in the upper part, as well as on the chitosan tetramer (D4, [GlcN]4, open circles) in the lower part. The reducing end of the (pa)COS always points to the right and is marked by a black circle. No activity is symbolized by an x, weak activity by an unfilled arrow, medium-strong activity by a grey-filled arrow, and strong activity by a black-filled arrow; arrows point to the unit of the (pa)COS which is preferentially de- or N-acetylated during either the 1st, 2nd, 3rd, or 4th attack by the different enzymes. Data summarized in this figure have been generated by (semi-)quantitative HILIC-ESI-MS analysis followed by 18O-labelling of the reducing end and MS/MS analysis.
