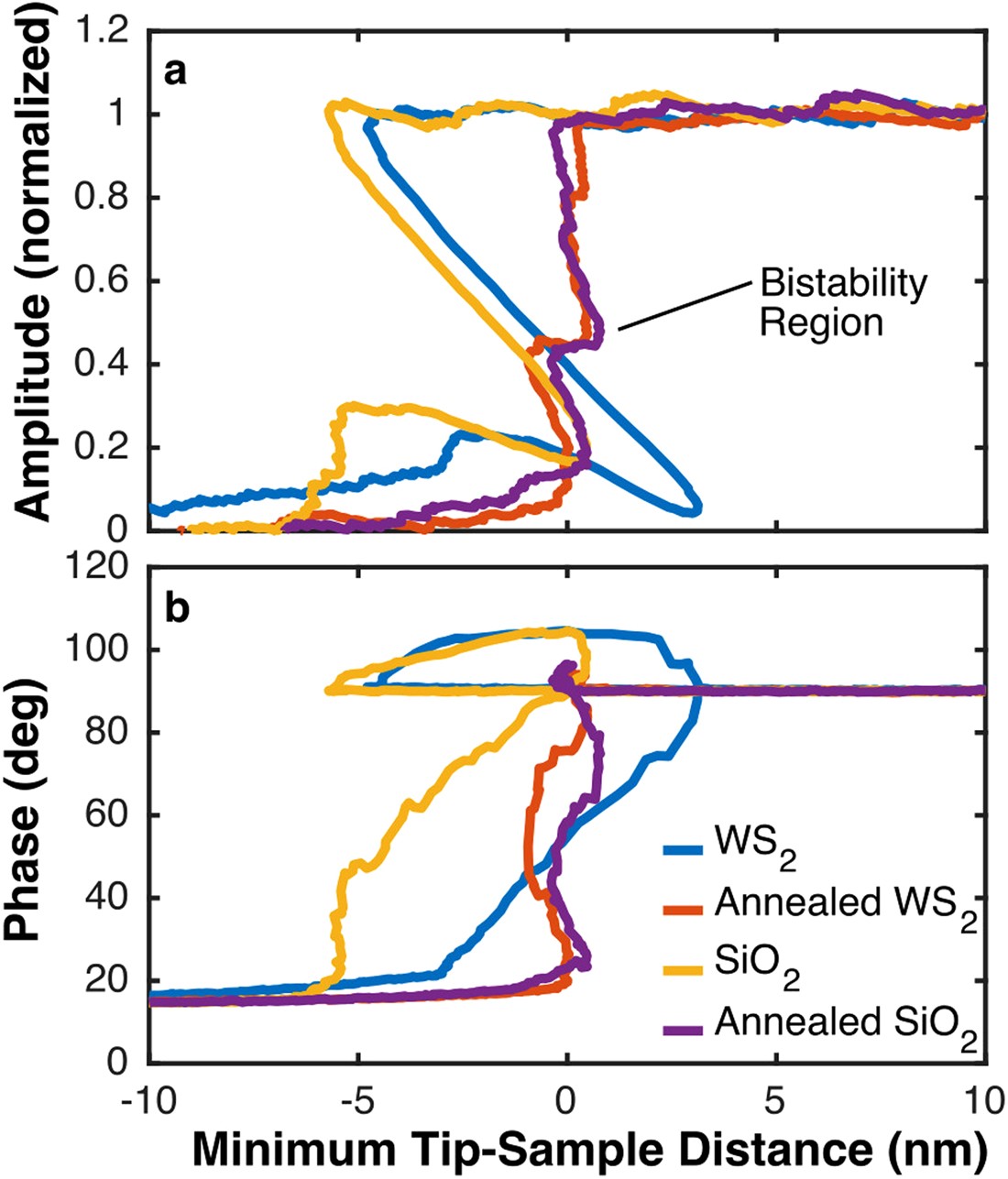

Figure 3

Normalized amplitude and phase vs minimum tip-sample distance. When converting from height to tip-sample distance, the dramatic amplitude reduction in the attractive region for non-annealed samples caused D to be not monotonic. The apparent greater width of the attractive region for WS₂ is due to more rapid amplitude reduction in the attractive regime.
