Figure 6 | Scientific Reports

Figure 6

From: Enrichment of megabase-sized DNA molecules for single-molecule optical mapping and next-generation sequencing

Figure 6

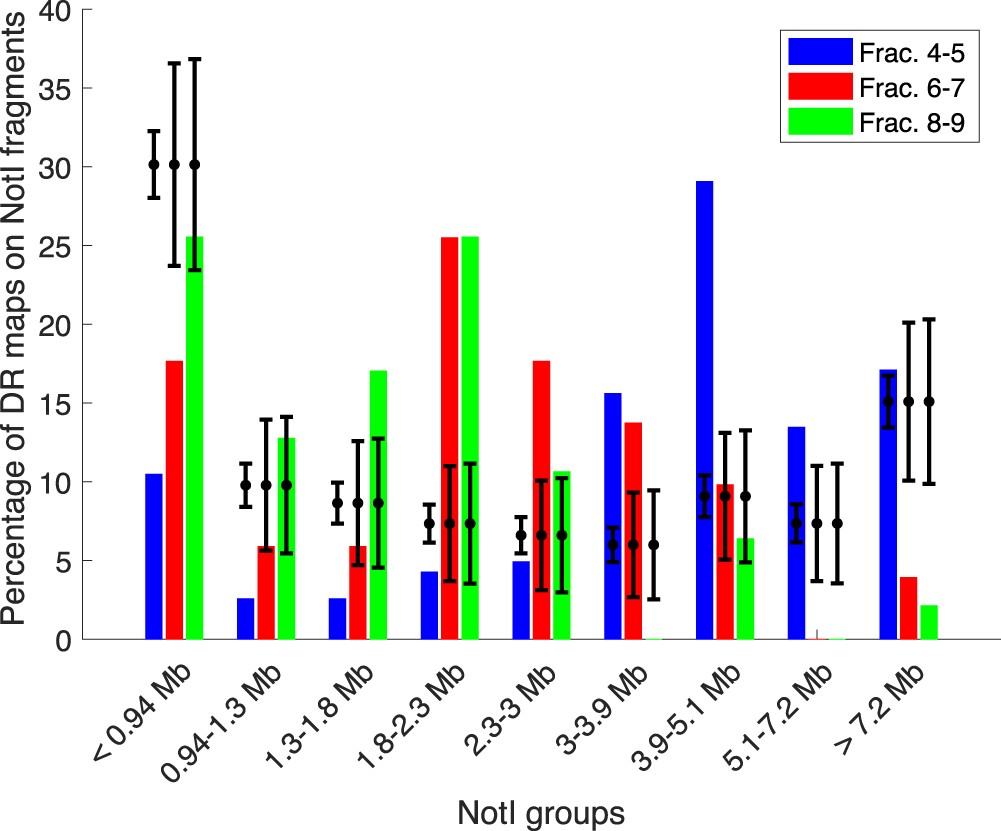

Overlaps between DR maps and the NotI groups for the three different fractions cut from the gel. The total number of counts is 468, 51, and 47 for fractions 4–5, 6–7 and 8–9, respectively. Points with error bars are the expected percentages of DR maps covering NotI fragments in each NotI group and their standard deviations estimated from binomial statistics.
