Figure 5
From: Quantitative TEM imaging of the magnetostructural and phase transitions in FeRh thin film systems

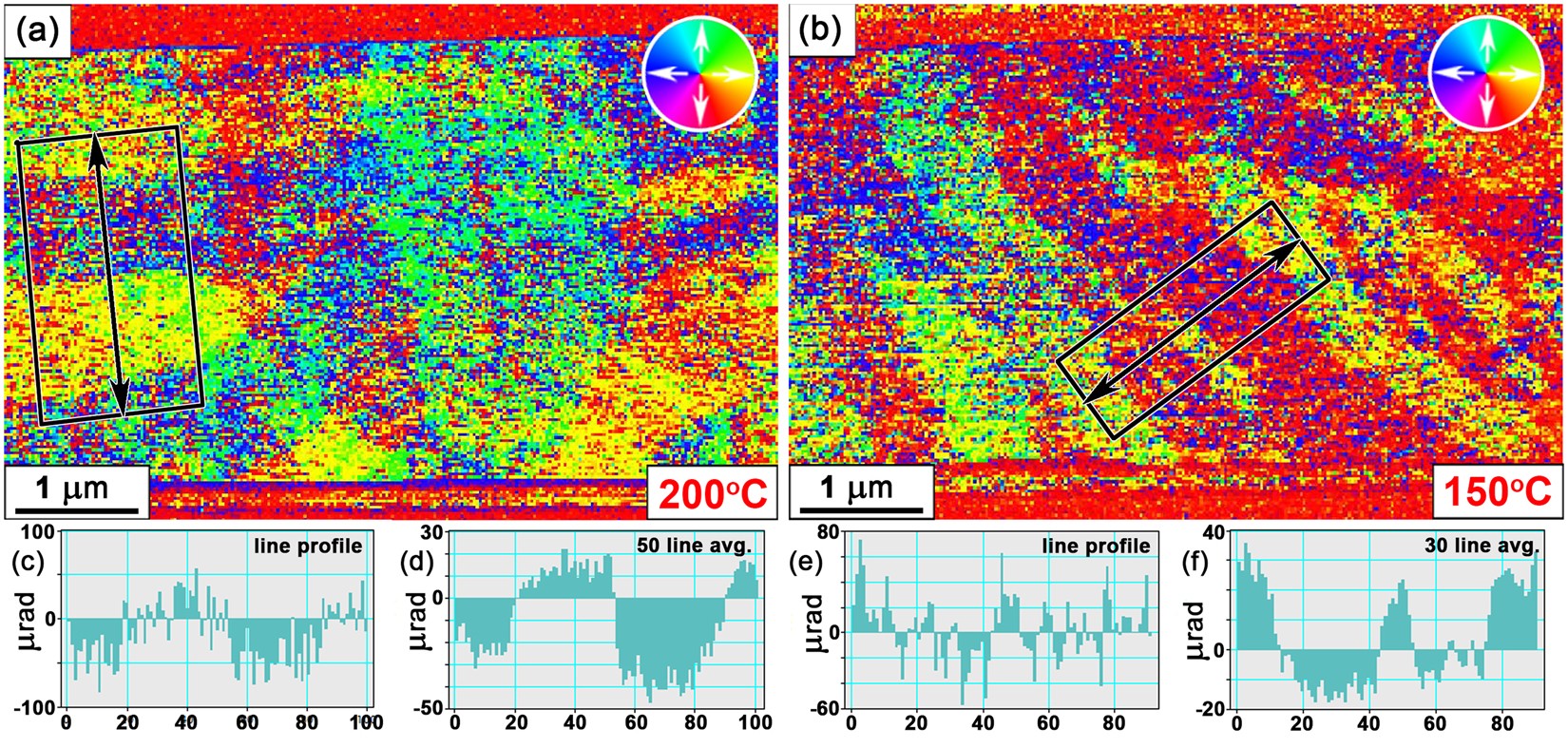

(a,b) DPC imaging of the planar FeRh thin films when heated in situ to (a) 200 °C (Sample 1); and (b) 150 °C (Sample 2). The direction of magnetisation is depicted in the colour wheels (inset). (c–f) Measurements of β l taken across (c,e) line and (d,f) average profiles along the arrows and boxed regions (black) in (a) and (b).
