Figure 6

From: Quantitative TEM imaging of the magnetostructural and phase transitions in FeRh thin film systems

Figure 6The alternative text for this image may have been generated using AI.

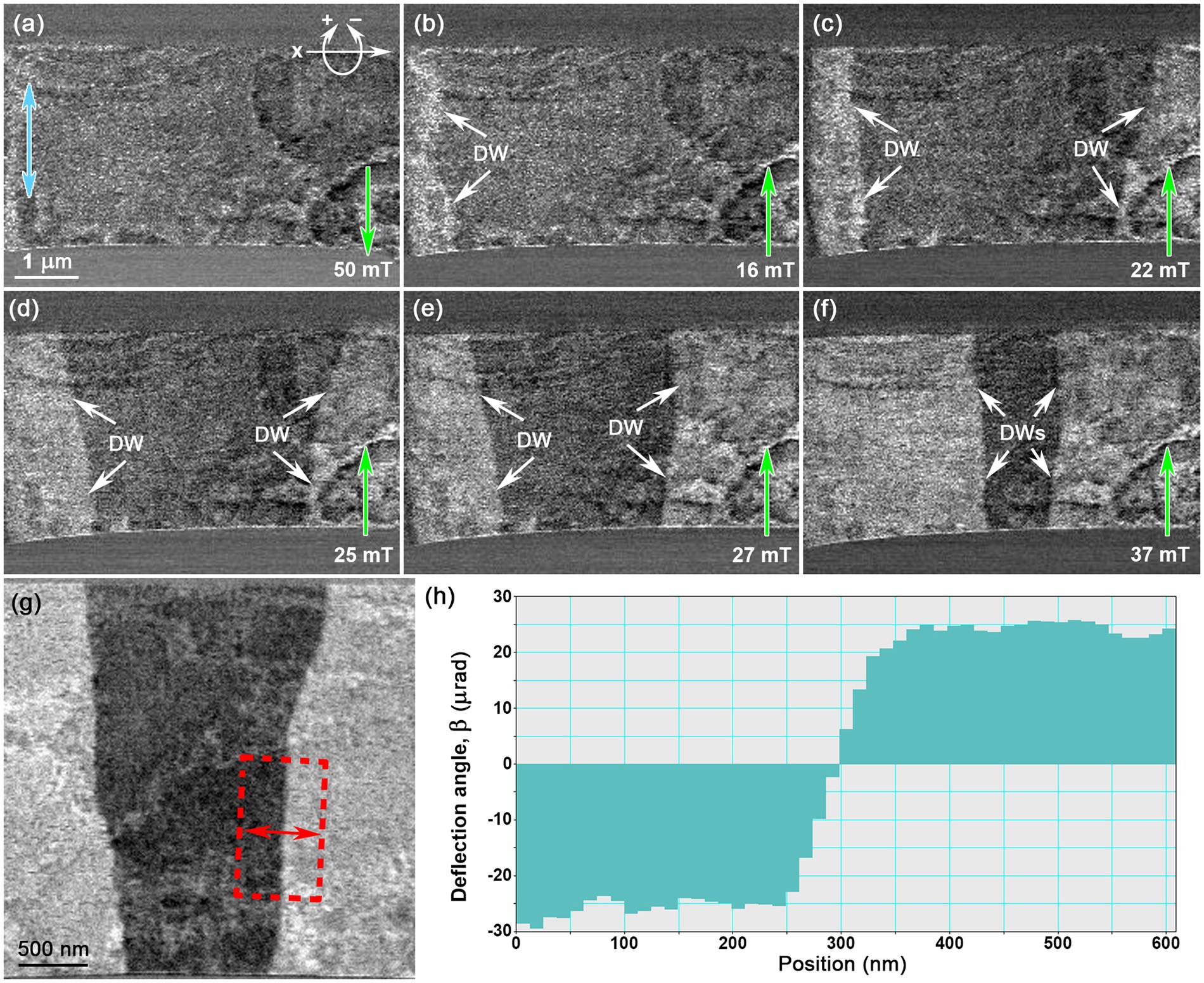

(a) DPC image of sample 1 in planar view after x-tilting to +23° (shown in top left) and applying an in-plane magnetic field of 50 mT (arrowed, green), and then x-tilting to −23°. (bf) DPC images of sample 1 in planar view x-tilted to −23° and applying in-plane magnetic fields of (b) 16 mT; (c) 22 mT; (d) 25 mT; (e) 27 mT; and (f) 37 mT (arrowed, green), inducing the movement of the DWs (arrowed, white). (g) DPC image of DWs used for measurement of β l in the form of (h) average line profile taken across the boxed region (red) in (g). All DPC images are sensitive to the component of magnetic induction indicated by the double-headed blue arrows in (a).
