Figure 7
From: Quantitative TEM imaging of the magnetostructural and phase transitions in FeRh thin film systems

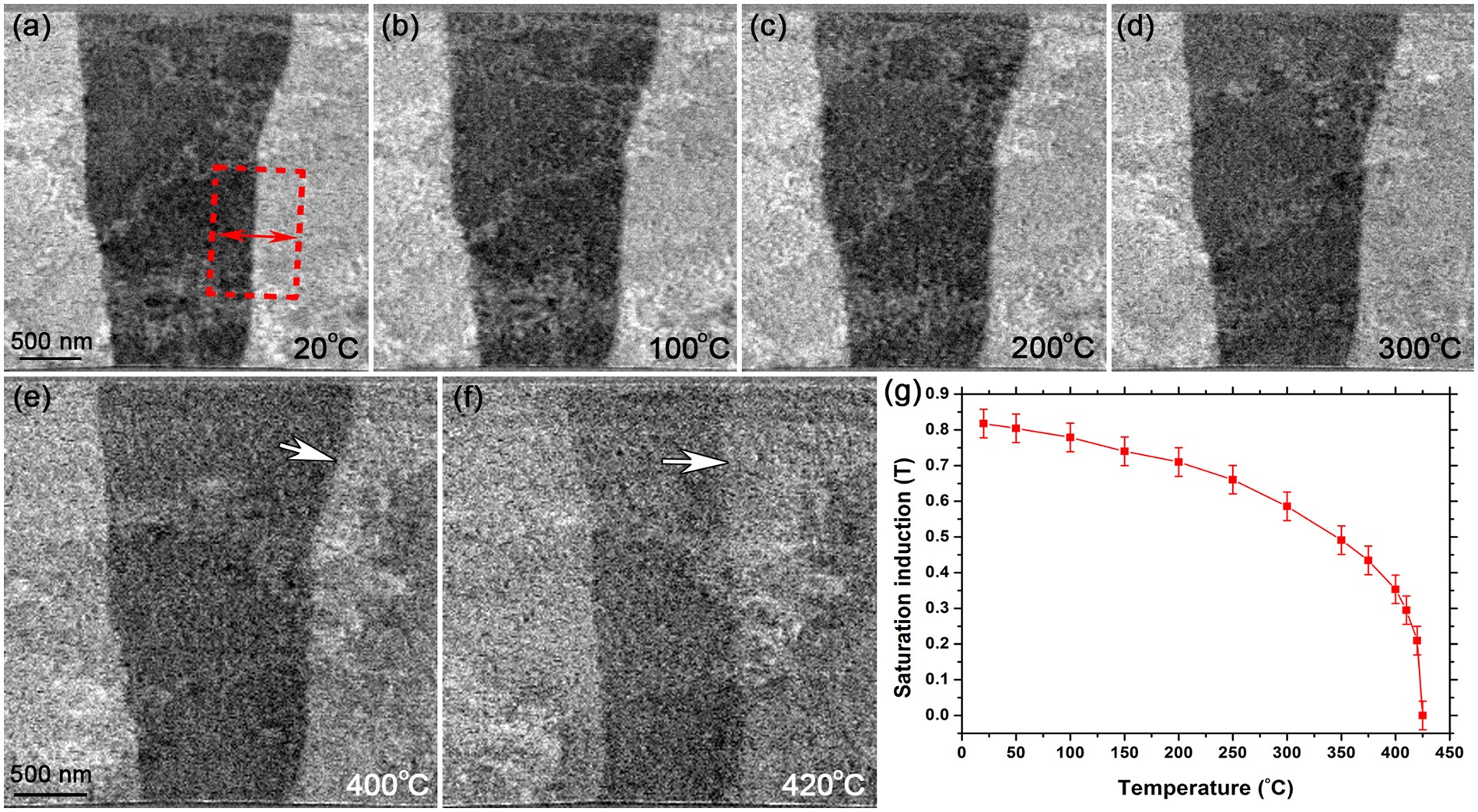

(a–f) DPC images of magnetic domains/DWs in sample 1 at (a) 20 °C; and during in situ heating to (b) 100 °C; (c) 200 °C; (d) 300 °C; (e) 400 °C; and (f) 420 °C. (g) Graph of saturation induction as a function of temperature, calculated using direct measurements of β l from the DW in the boxed region (red) defined in (a).
