Figure 6 | Scientific Reports

Figure 6

From: An assay for the identification of Plasmodium simium infection for diagnosis of zoonotic malaria in the Brazilian Atlantic Forest

Figure 6

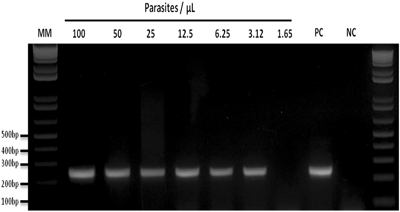

Detection limit of the Nested-PCR for a differential diagnosis of Plasmodium simium. P. simium human DNA sample were serially diluted 2-fold with a starting parasitemia of 100 parasites/µL to 1.65 parasites/µL. 2% Agarose gel stained with ethidium bromide. MM:1 kb Plus Ladder, PC: positive control, NC: negative control (without DNA).
