Figure 7
From: Large dynamic range pressure sensor based on two semicircle-holes microstructured fiber

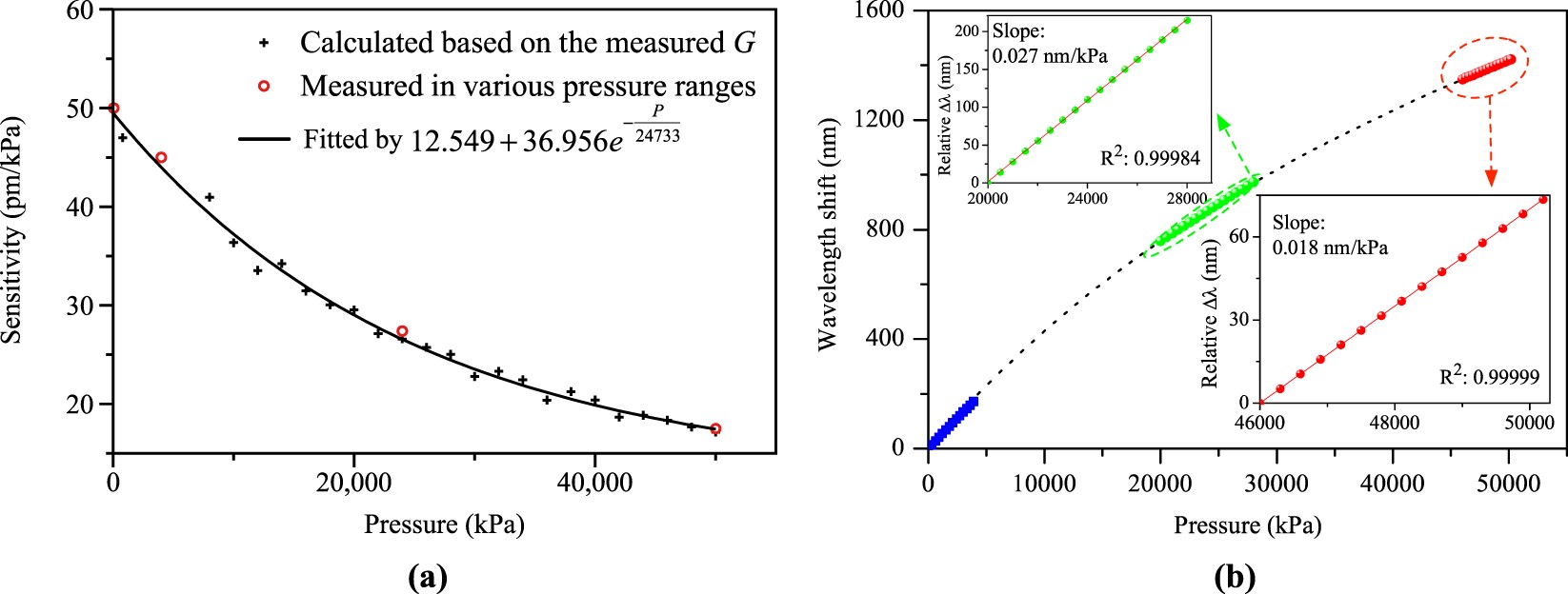

(a) Measured and calculated pressure sensitivities with respect to applied pressure; and (b) calculated wavelength shift (dashed line) as function of the full range pressure. Insets show the measured responses for the pressure ranges of 20,000–28,000 kPa and 46,000–50,000 kPa.
