Figure 2

From: Resonant plasma excitation by single-cycle THz pulses

Figure 2

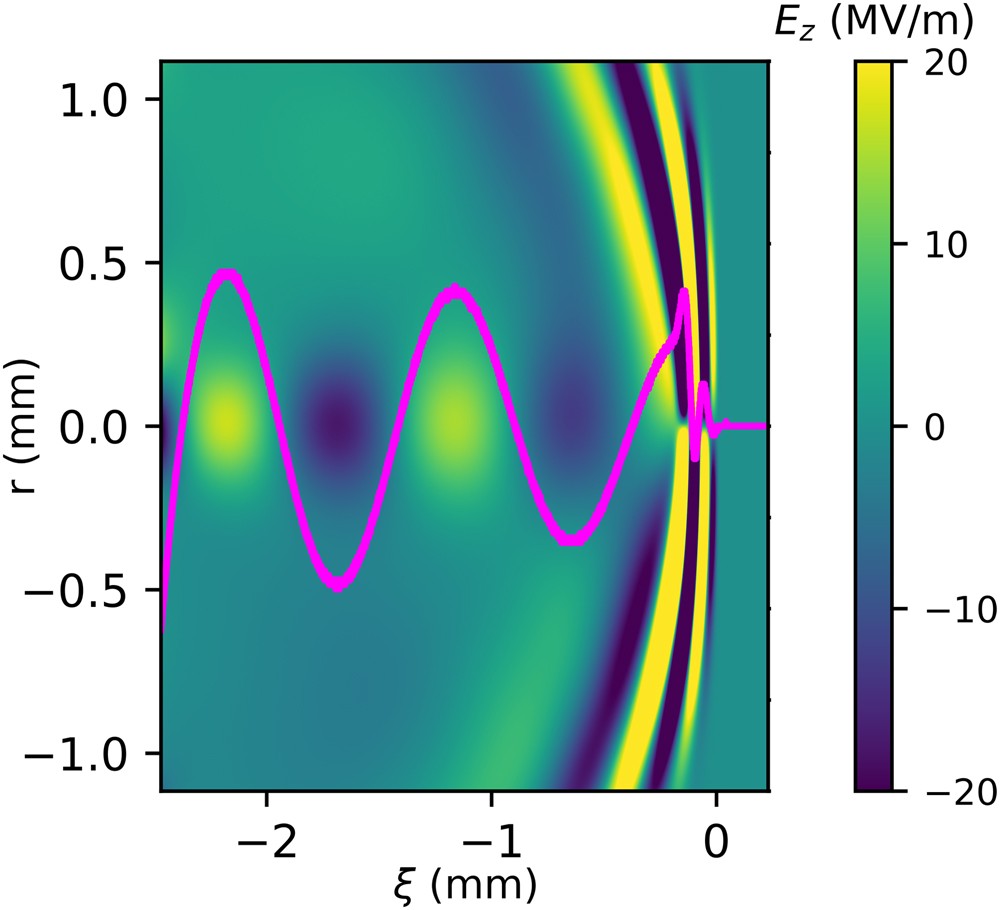

2D map of the total longitudinal electric field for the input parameters a0 = 0.2, λp = 1 mm (n0 = 1 × 1015 cm−3), and L = 105 μm. Starting from right: fast field component oscillating at twice the frequency of the THz driver followed by the generated electron plasma wakefield after 2.5 mm of propagation inside the plasma. The axial wakefield lineout is also shown in violet, with a peak amplitude of 16 MV/m for a0 = 0.2.
