Figure 5
From: Multi-valued and Fuzzy Logic Realization using TaOx Memristive Devices

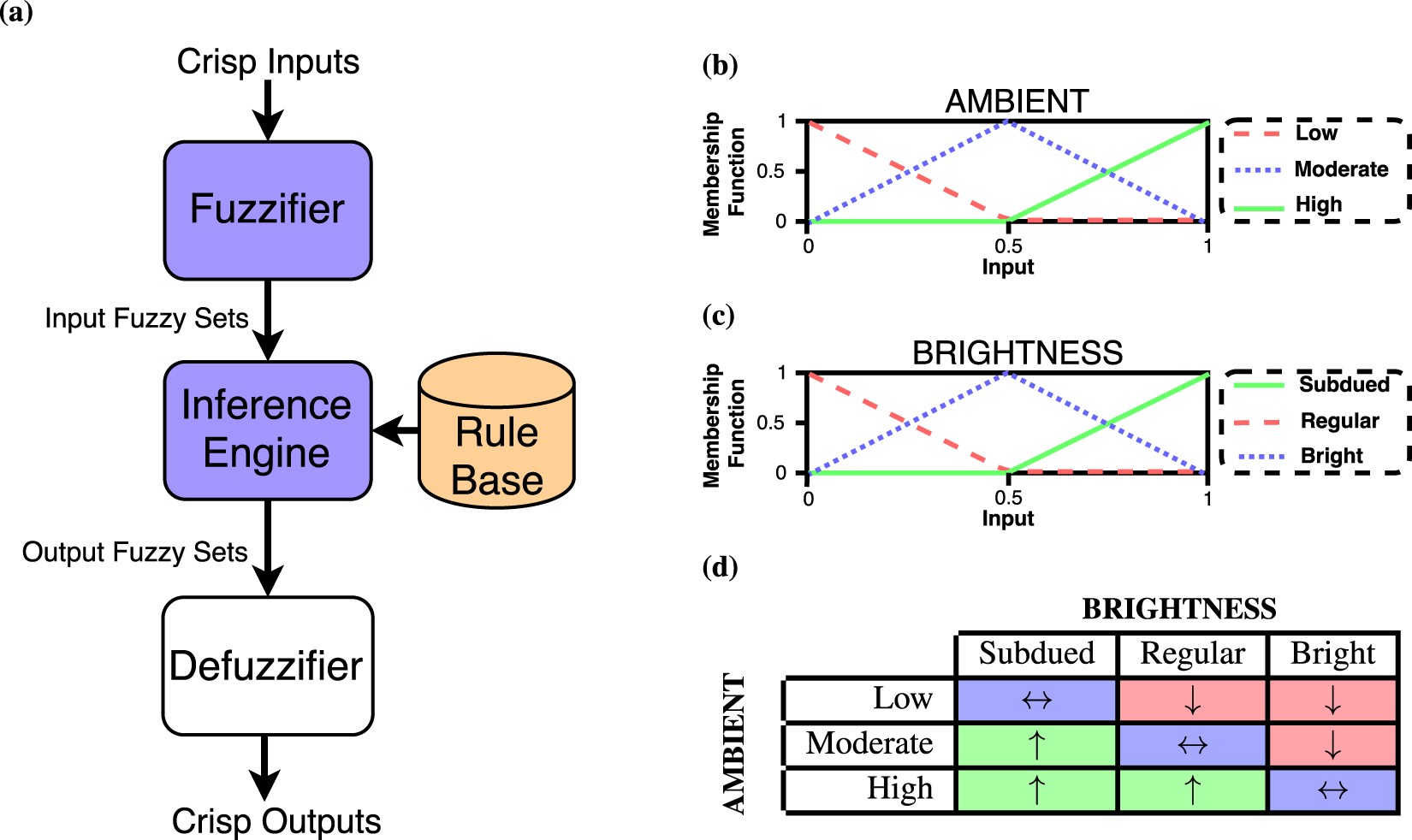

Fuzzy logic control. (a) Processing blocks used for fuzzy logic control are shown. The violet coloured blocks are implemented using the multi-state ReRAM devices. The rule base is stored as control/instruction steps. (b) Membership functions for variable AMBIENT. (c) Membership functions for variable BRIGHTNESS. (d) Rule table for fuzzy brightness controller.
