Figure 6
From: Multi-valued and Fuzzy Logic Realization using TaOx Memristive Devices

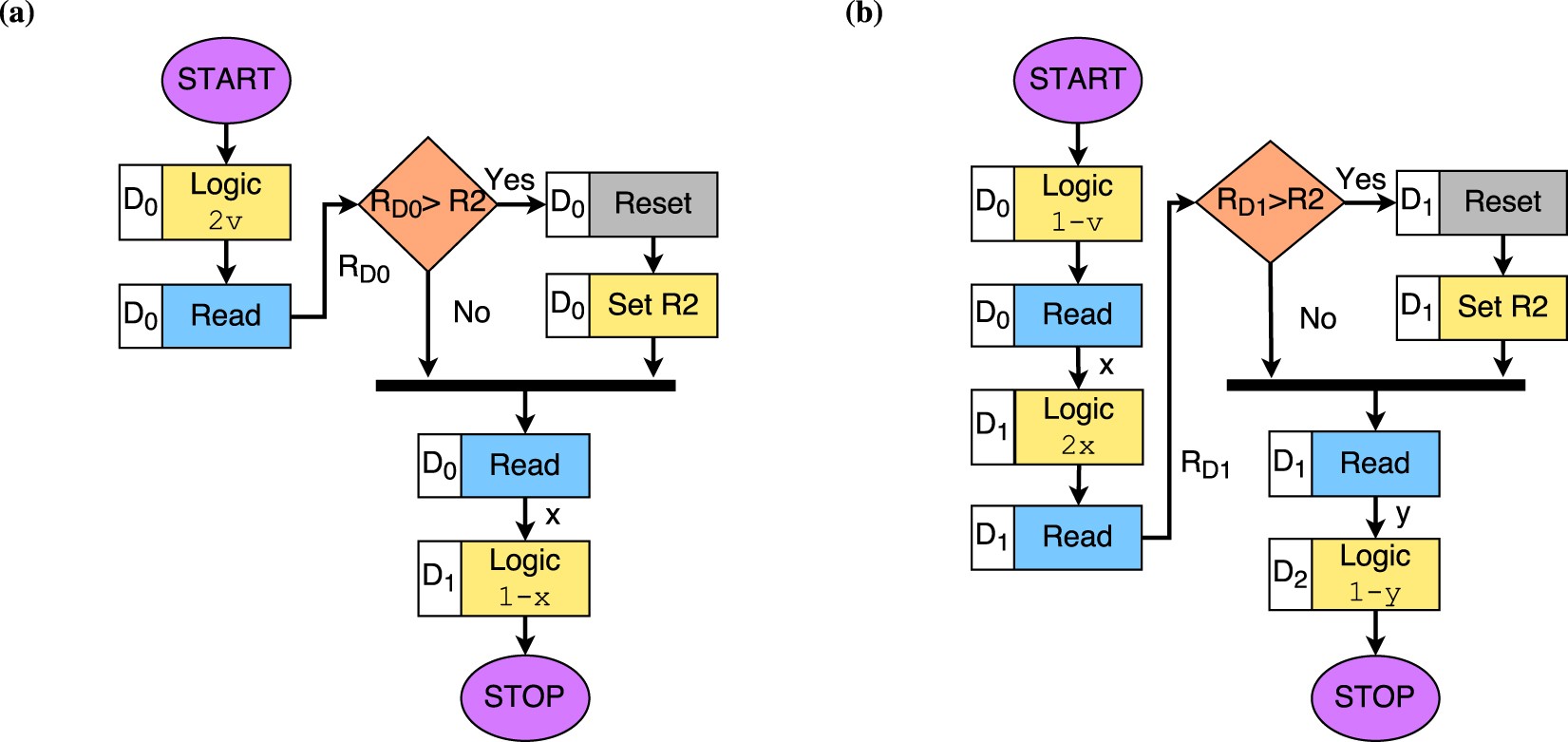

Realization of two fuzzy membership functions. (a) Steps to compute inverted notch[(¬v → v) → 0]. (b) Steps to compute flipped notch[(v → ¬v) → 0].
