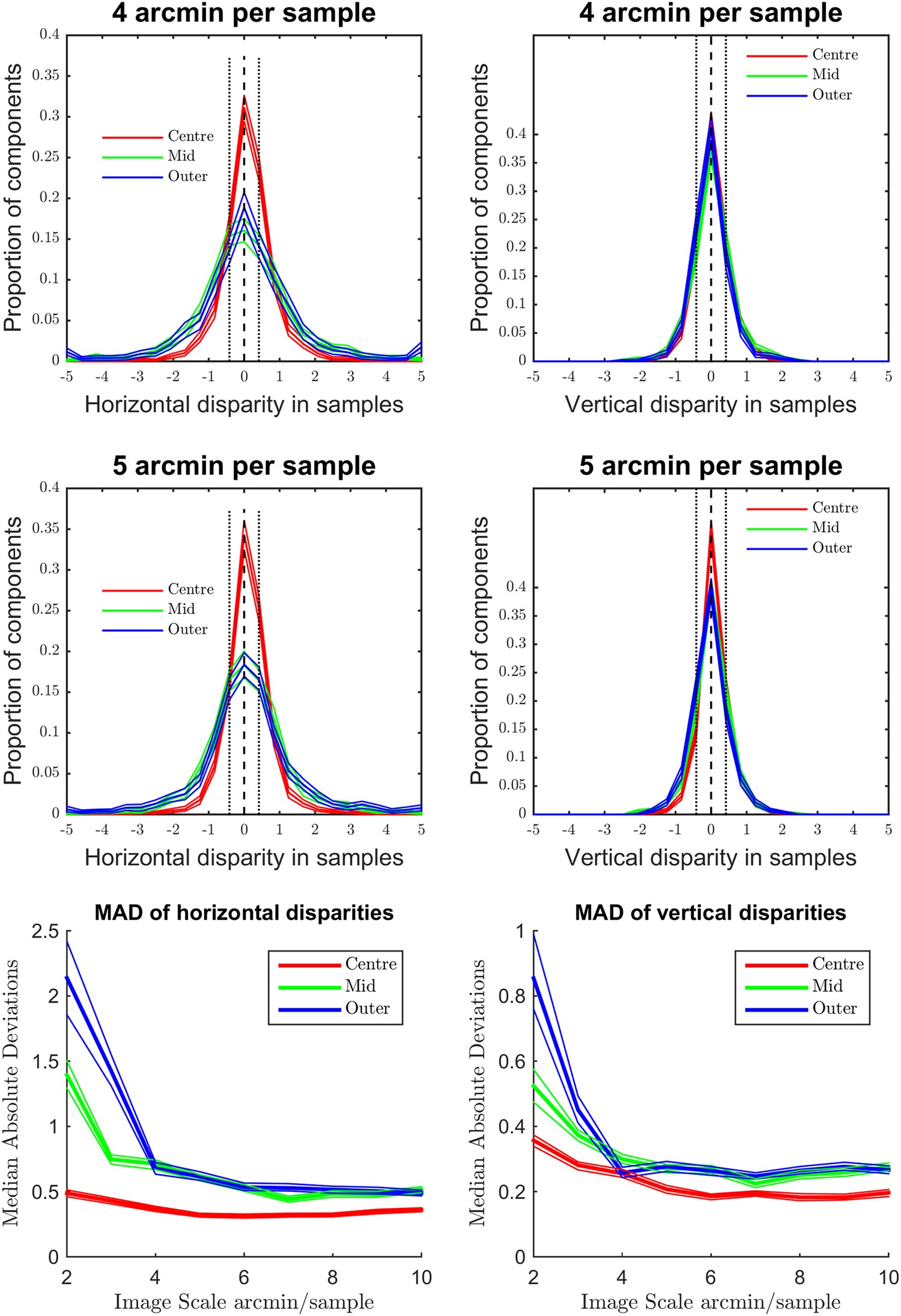

Figure 4
From: The effect of image position on the Independent Components of natural binocular images
Distributions of horizontal and vertical position disparity across eccentricity. (A,C) Distributions of horizontal position disparity across eccentricity at 4 (A) and 5 (C) arcmin per sample. Thick lines show the median of bootstrapped histograms, thin lines show the 95% confidence intervals. (B,D) Distributions of vertical position disparity across eccentricity at 4 (B) and 5 (D) arcmin per sample. (E,F) Median of Absolute Deviations in horizontal (E) and vertical (F) position disparity across sample resolution at each eccentricity region.
