Figure 7
From: Plasmonic waveguide design for the enhanced forward stimulated brillouin scattering in diamond

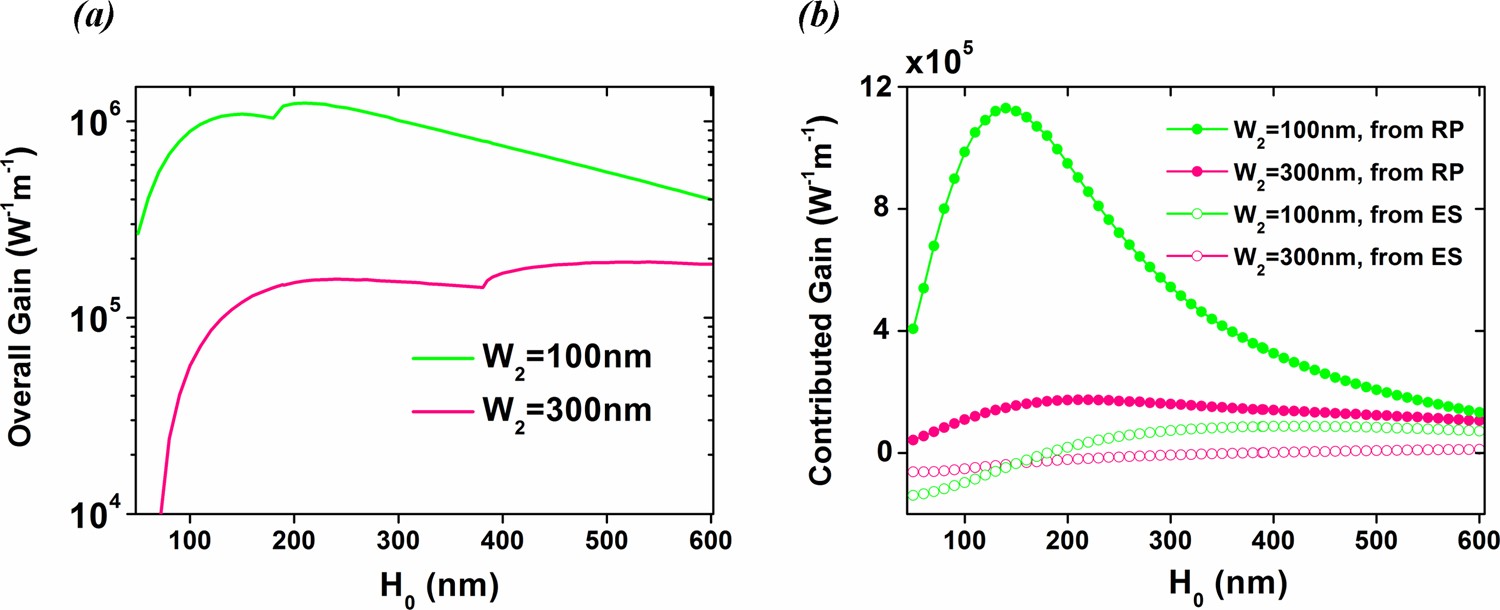

(a) Overall gains vs. the height of the dielectric material H 0 for the most promising mode E2 in the FSBS process. (b) Corresponding contributed gains from ES and RP forces, as H 0 varies.
