Figure 3
From: Extracellular Total Electrolyte Concentration Imaging for Electrical Brain Stimulation (EBS)

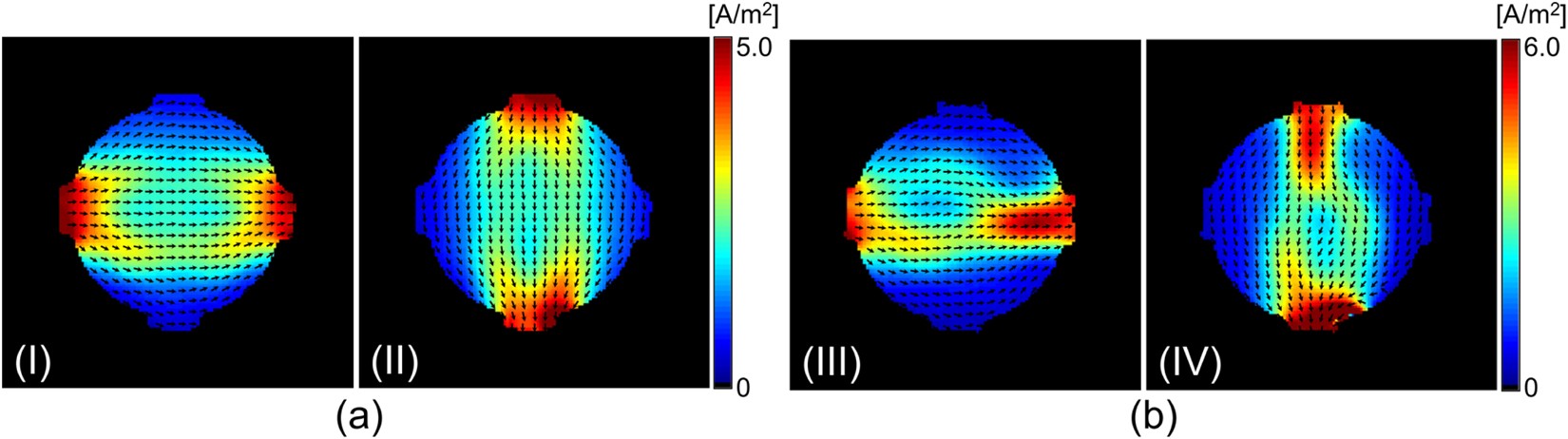

(a) and (b) Intensity of the projected current density in both directions (I and II), recovered from the measured magnetic flux density in Fig. 2(b) and (e), respectively. The normalized arrow plots show the direction of the current flow.
