Figure 4
From: Extracellular Total Electrolyte Concentration Imaging for Electrical Brain Stimulation (EBS)

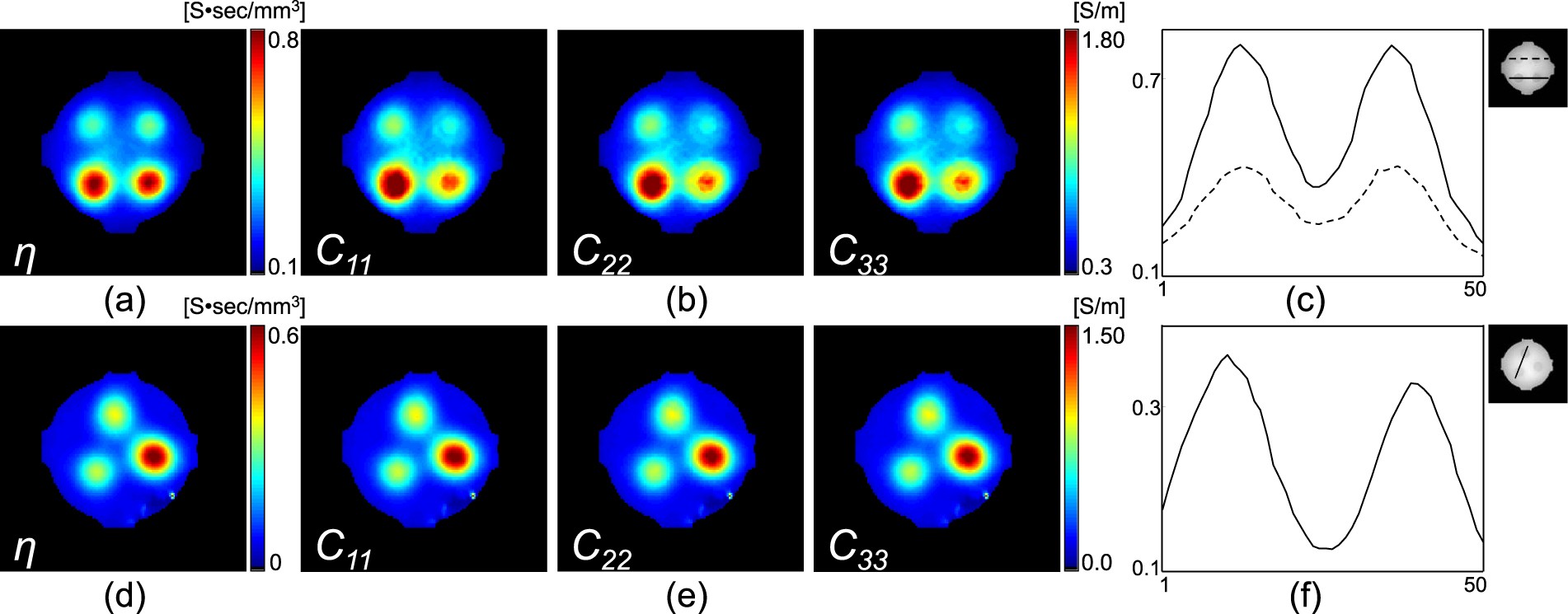

(a) and (d) Reconstructed ion concentration images for phantom-1 and 2, respectively. (b) and (e) Corresponding diagonal components of the conductivity tensor. (c) and (f) Profile plots of the reconstructed ion concentration images.
