Figure 9
From: Extracellular Total Electrolyte Concentration Imaging for Electrical Brain Stimulation (EBS)

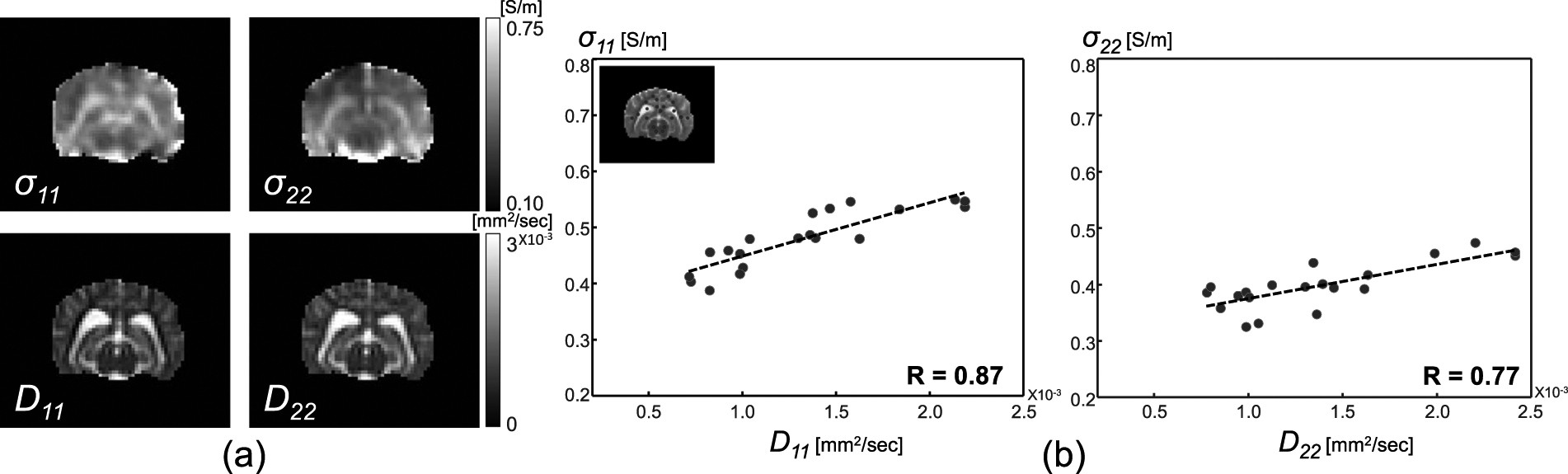

(a) Upper row: diagonal components of the reconstructed conductivity tensor by solving matrix system (4), bottom row: diagonal components of the water diffusion tensor. (b) Linear relationship between the estimated axial conductivity and water diffusion tensors.
