Figure 3

From: Genome-wide identification and characterization of SPL transcription factor family and their evolution and expression profiling analysis in cotton

Figure 3

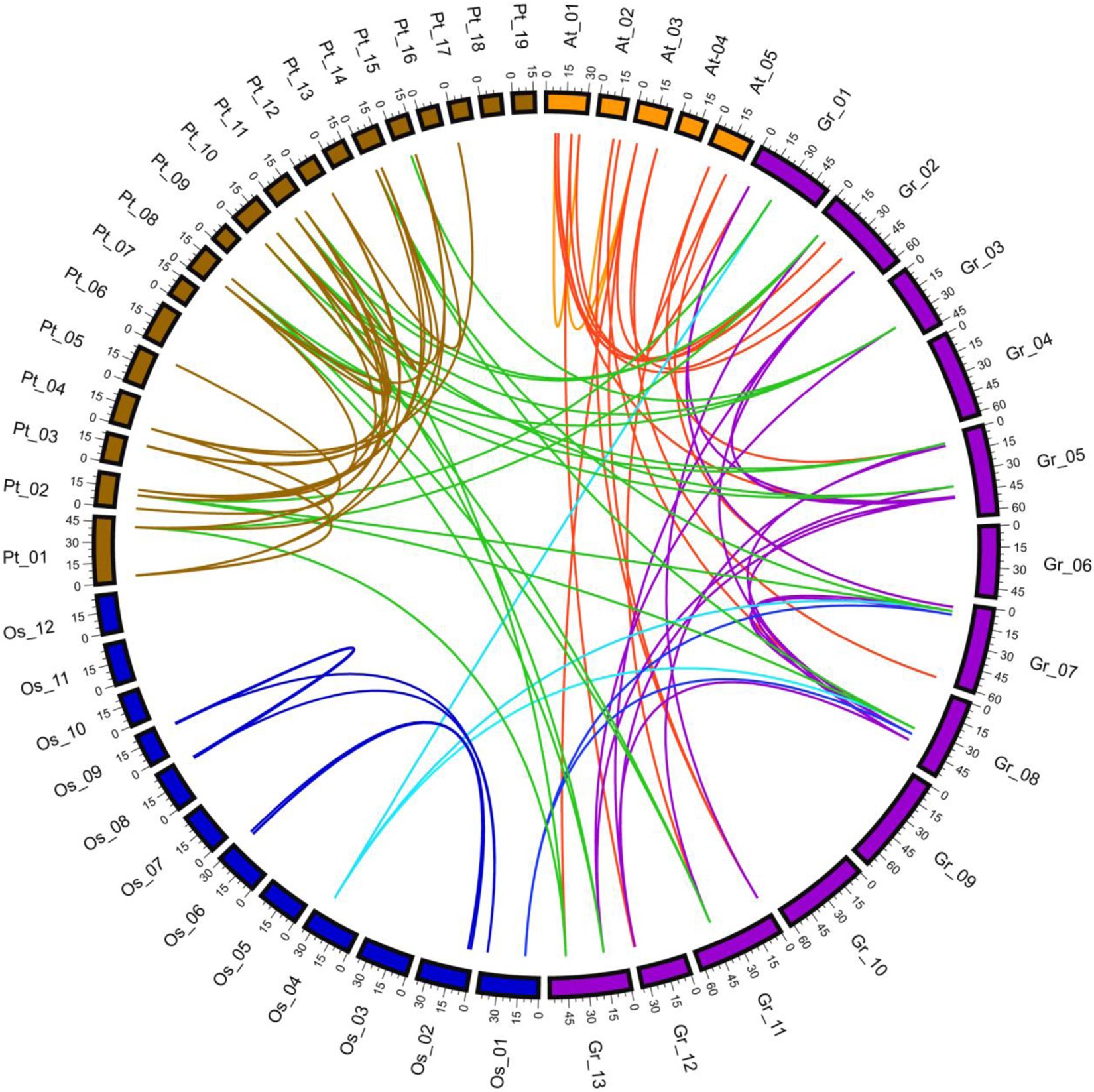

Distribution of the intra- and inter-genomic duplications of SPL genes in G. raimondii, A. thaliana, O. sativa and P. trichocarpa. G. raimondii, A. thaliana, O. sativa and P. trichocarpa chromosomes made a circle using CIRCOS. The different species chromosomes and their intra-genomic duplication were depicted with different colors. Intra-genomic duplication between G. raimondii and other three species (A. thaliana, O. sativa and P. trichocarpa) were indicated with red, cyan and forestgreen lines, respectively.
