Figure 2

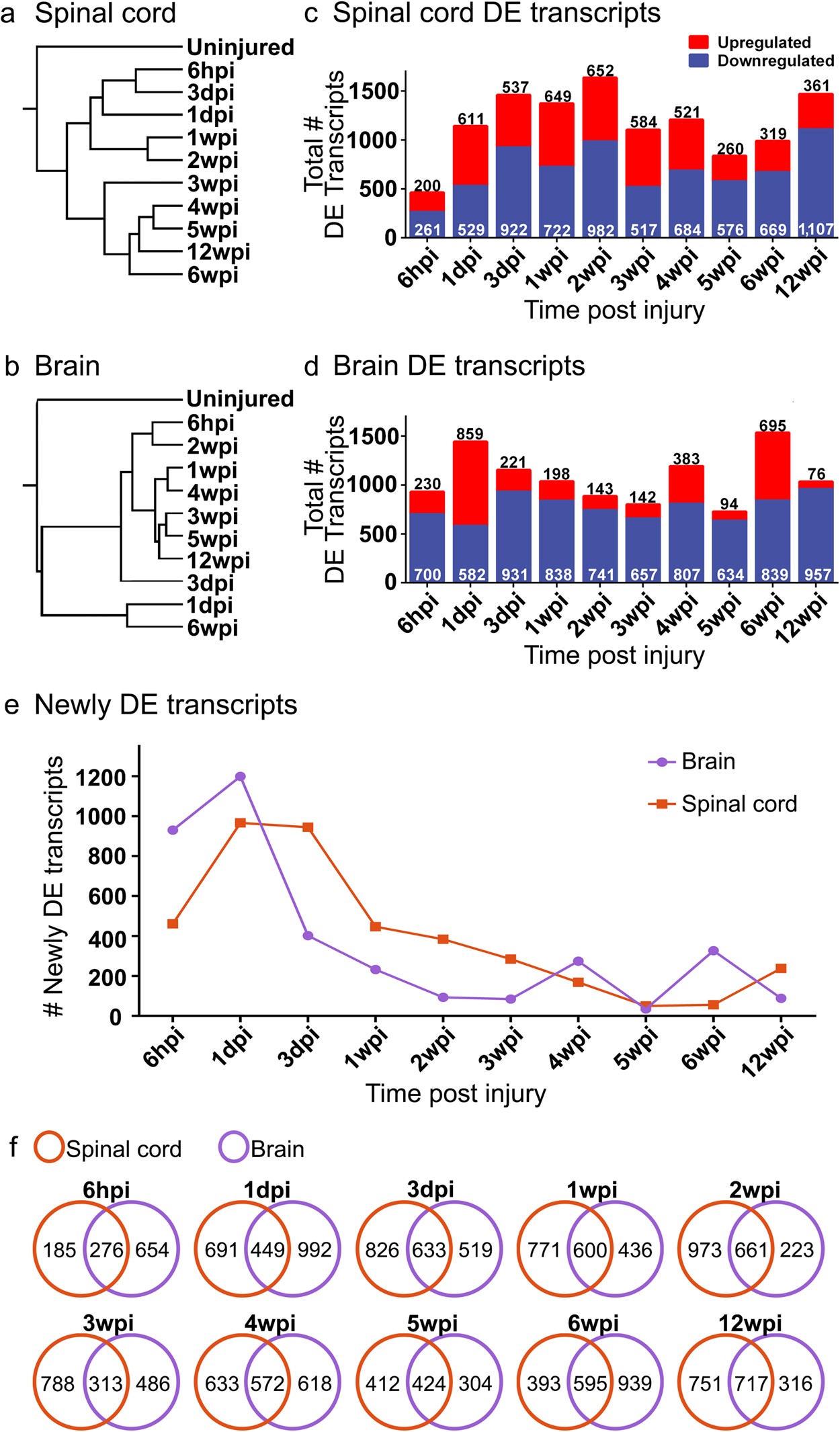

Differential expression of transcripts after spinal cord injury. (a,b) Dendrograms depict 2-way hierarchical clustering (Ward method) to reveal relationships between transcriptional profiles at experimental time points in spinal cord (a) and brain (b). The number of transcripts that were differentially expressed is shown for spinal cord (c) and brain (d). (e) Line graphs show number of transcripts that are newly differentially expressed at each time point following injury. (f) Venn diagrams show the number of transcripts among differentially expressed transcripts that are shared or unique to spinal cord or brain at each time point. Transcripts corresponding to each panel in F are found in Supplementary Table S3.
