Figure 3

From: Highly conserved molecular pathways, including Wnt signaling, promote functional recovery from spinal cord injury in lampreys

Figure 3

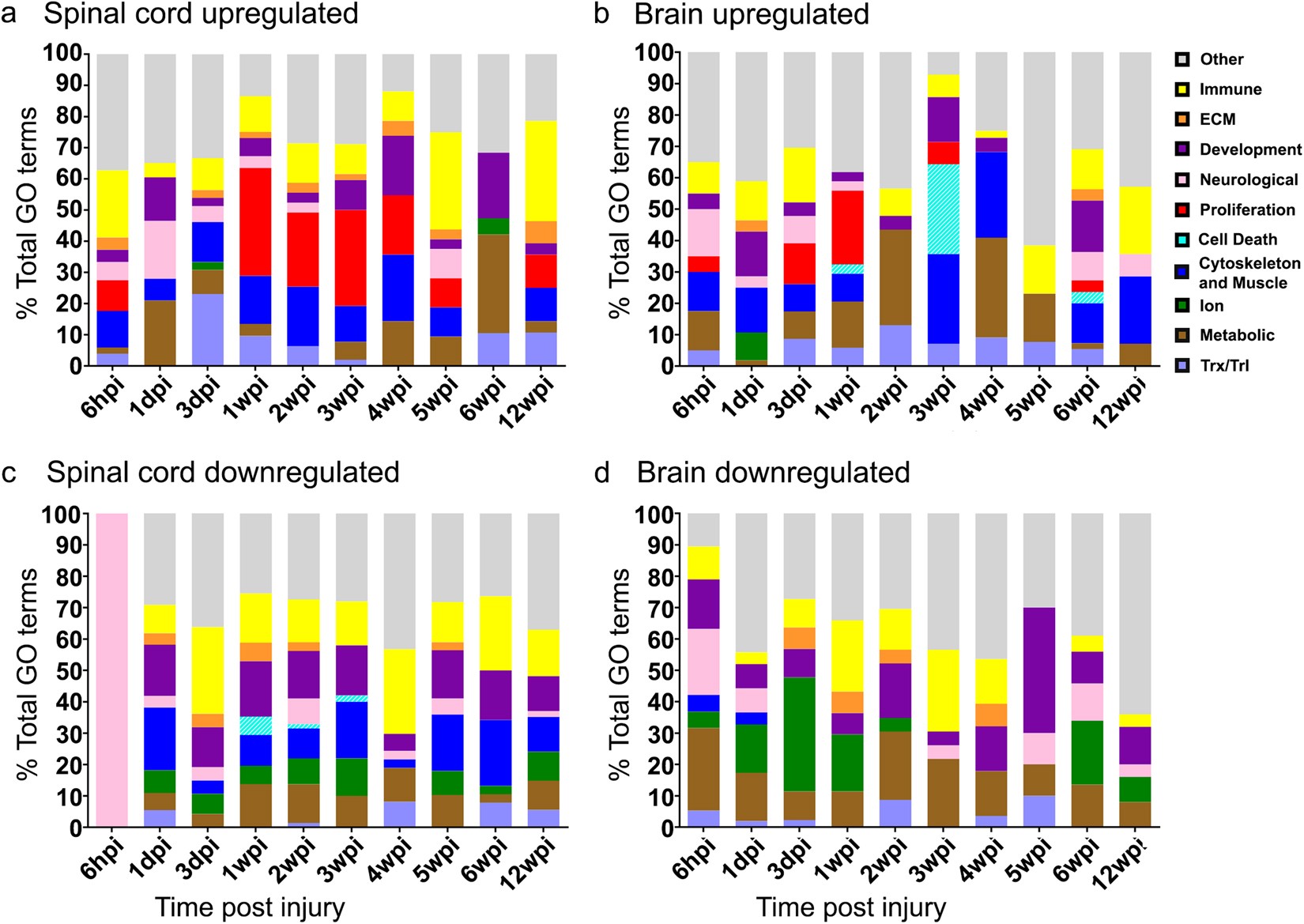

Functions of differentially expressed genes. Stacked bar graphs show the percentages (Y-axis) of significantly enriched categories of GO Biological Process (BP) terms encompassing differentially expressed transcripts that are upregulated (a,b) or down-regulated (c,d) in the spinal cord or brain at each time point (p ≤ 0.05). The X-axis indicates the experimental time point. Individual GO terms were manually bundled into larger descriptive groups (see Supplementary Table S4), indicated in the legend.
