Figure 2

From: Evolutionary analyses of myosin genes in trypanosomatids show a history of expansion, secondary losses and neofunctionalization

Figure 2

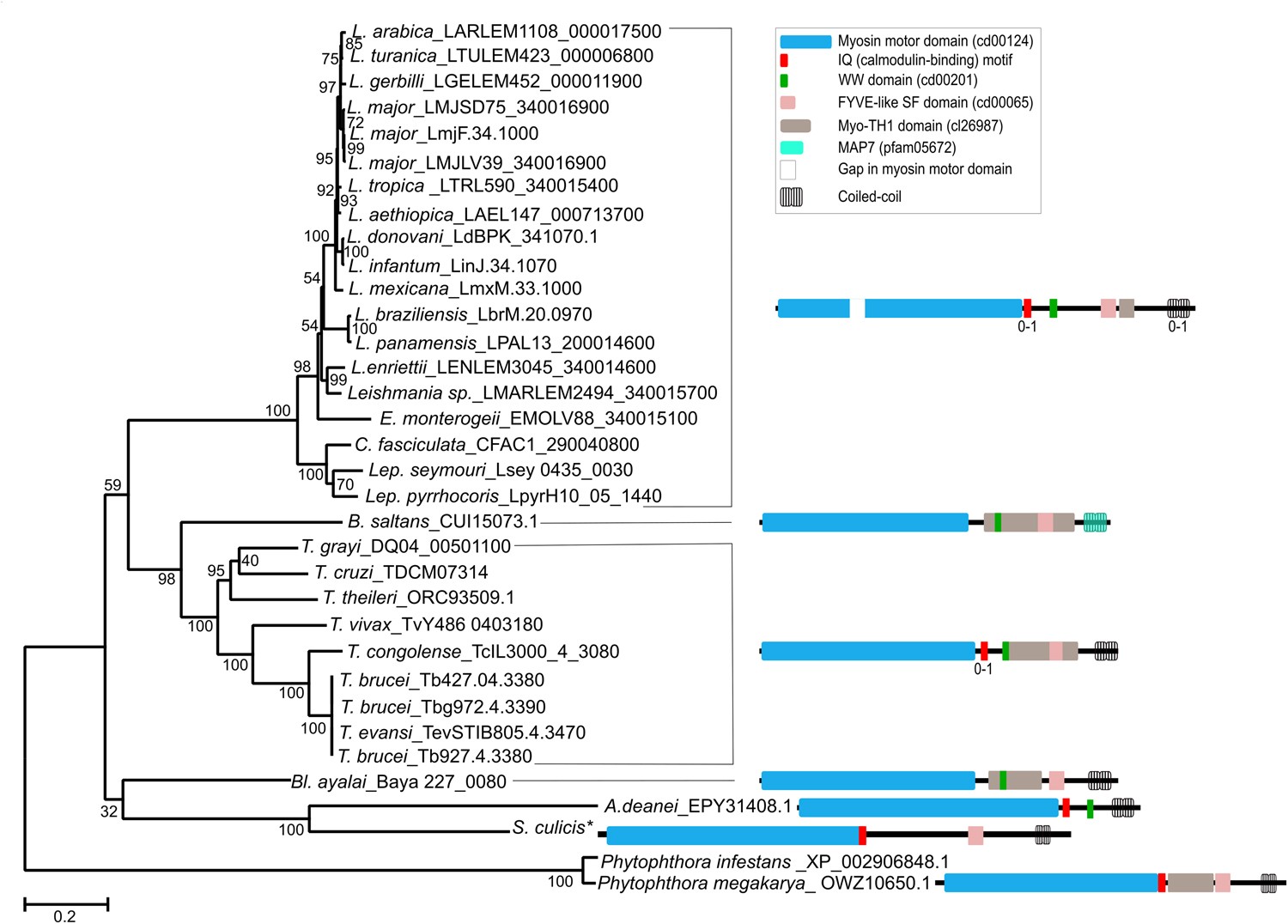

Phylogenetic tree of kinetoplastid Class I myosin proteins. The evolutionary history was inferred by using the maximum likelihood method based on the JTT + G (4 categories) model. Bootstrap values from 1,000 replicates are shown next to the branches. The tree is drawn to scale, with branch lengths measured in the number of substitutions per site. The analysis involved 34 amino acid sequences. There were 1,185 positions in the final dataset. Phytophthora genus related myosins were used to root the tree. Sequences are identified by the name of species and the GenBank or TritrypDB accession number. Asterisk represents the S. culicis Myo1 sequence obtained from the S. culicis TCC012E genome, contig coordinates AUXH01000328.1:350-4390. T. rangeli sequence (TRSC58_03135) was not included in the phylogeny because it is very short. Protein domain architectures of main sequences are shown.
