From: Microdosimetric Modeling of Biological Effectiveness for Boron Neutron Capture Therapy Considering Intra- and Intercellular Heterogeneity in 10B Distribution

Figure 11

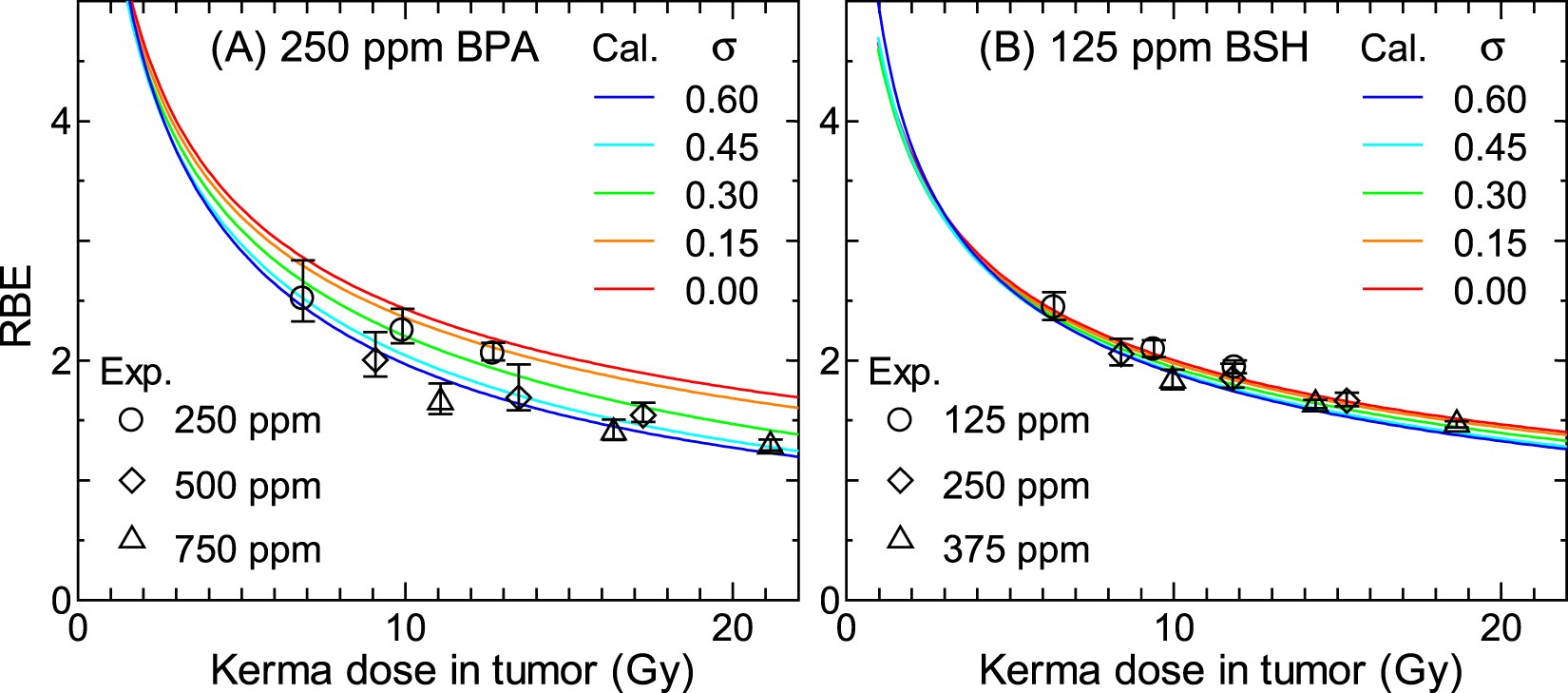

Calculated RBE for (A) 250 ppm BPA and (B) 125 ppm BSH considering the intercellular heterogeneity in 10B distributions. The Gaussian distributions with the standard deviation σ were assumed in the calculation. The corresponding experimental data including those for other 10B concentrations are also shown in the graphs.
