Figure 1

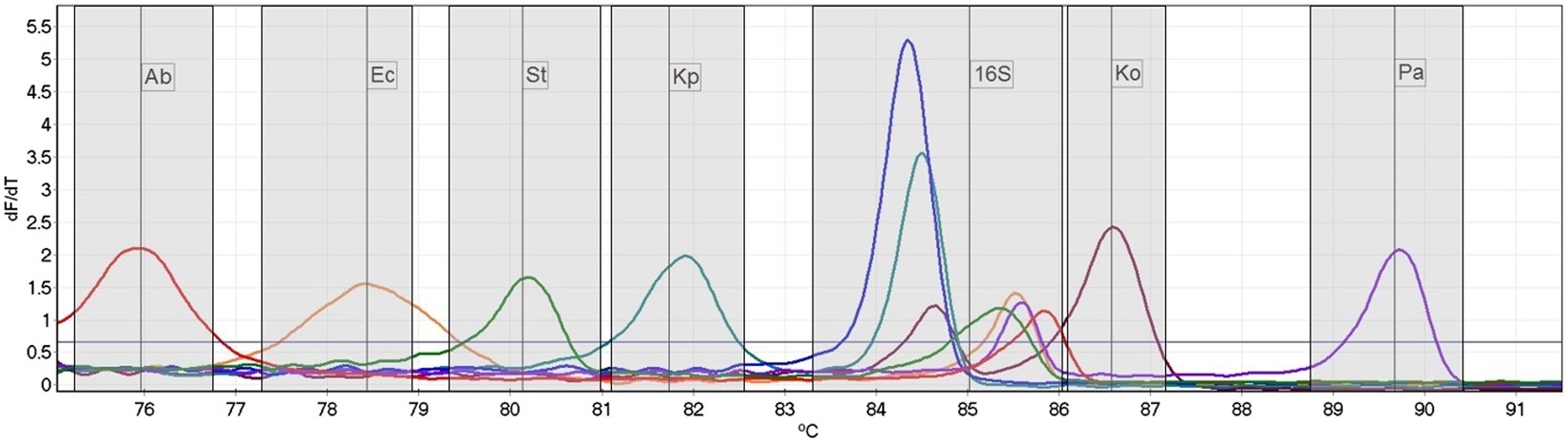

High resolution melt profile of the 6 amplicons for each species targeted by the assay, in addition to a single non-target Gram-negative isolate (En. Cloacae, dark blue line). All isolates have generated a 16S control peak over the calling threshold. Temperature ranges for result calling are indicated by the shaded areas, and the detection threshold indicated by the horizontal line. (Ab) A. baumannii, (Ec) E. coli, (S) Salmonella, (Kp) K. pneumoniae, (Ko) K. oxytoca, (Pa) P. aeruginosa.
