From: The crystal structure of D-xylonate dehydratase reveals functional features of enzymes from the Ilv/ED dehydratase family

Figure 2

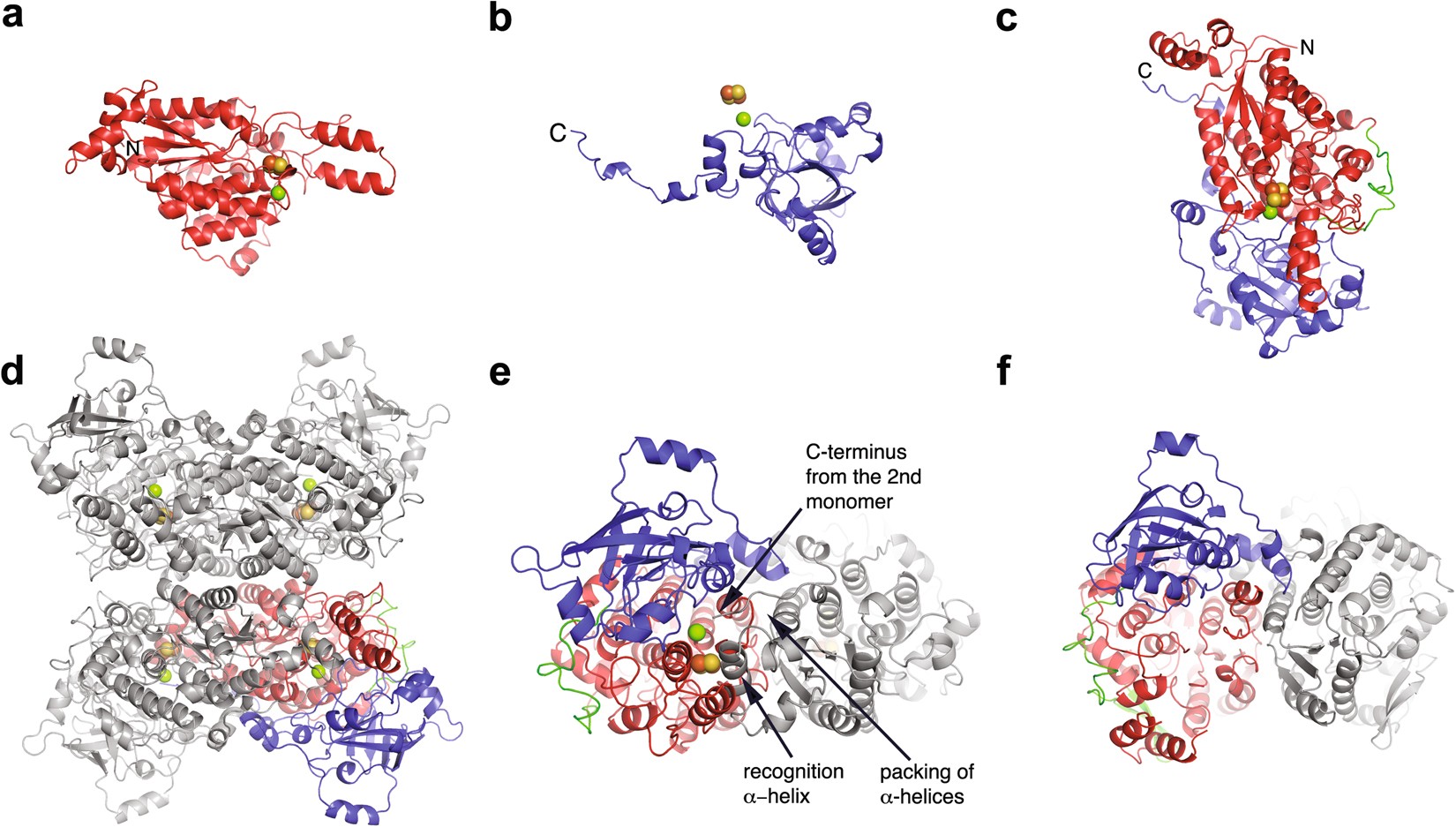

Structure of CcXyDHT and comparison of the dimers; the N- and C-terminal domains are shown in red and in blue, respectively. A long loop connecting the domains is shown in green. The [2Fe-2S] cluster is shown with yellow and orange spheres, and Mg2+ is shown as a green sphere. (a) N-terminal domain, (b) C-terminal domain, (c) monomer, (d) tetramer, (e) the dimer of CcXyDHT in which the monomeric unit is shown in colours and the dimeric counterpart is in grey, and (f) the dimer of So6PGHDT. The key features on the monomer-monomer interface are marked with arrows.
