Figure 6

From: Differential tolerance to nickel between Dreissena polymorpha and Dreissena rostriformis bugensis populations

Figure 6

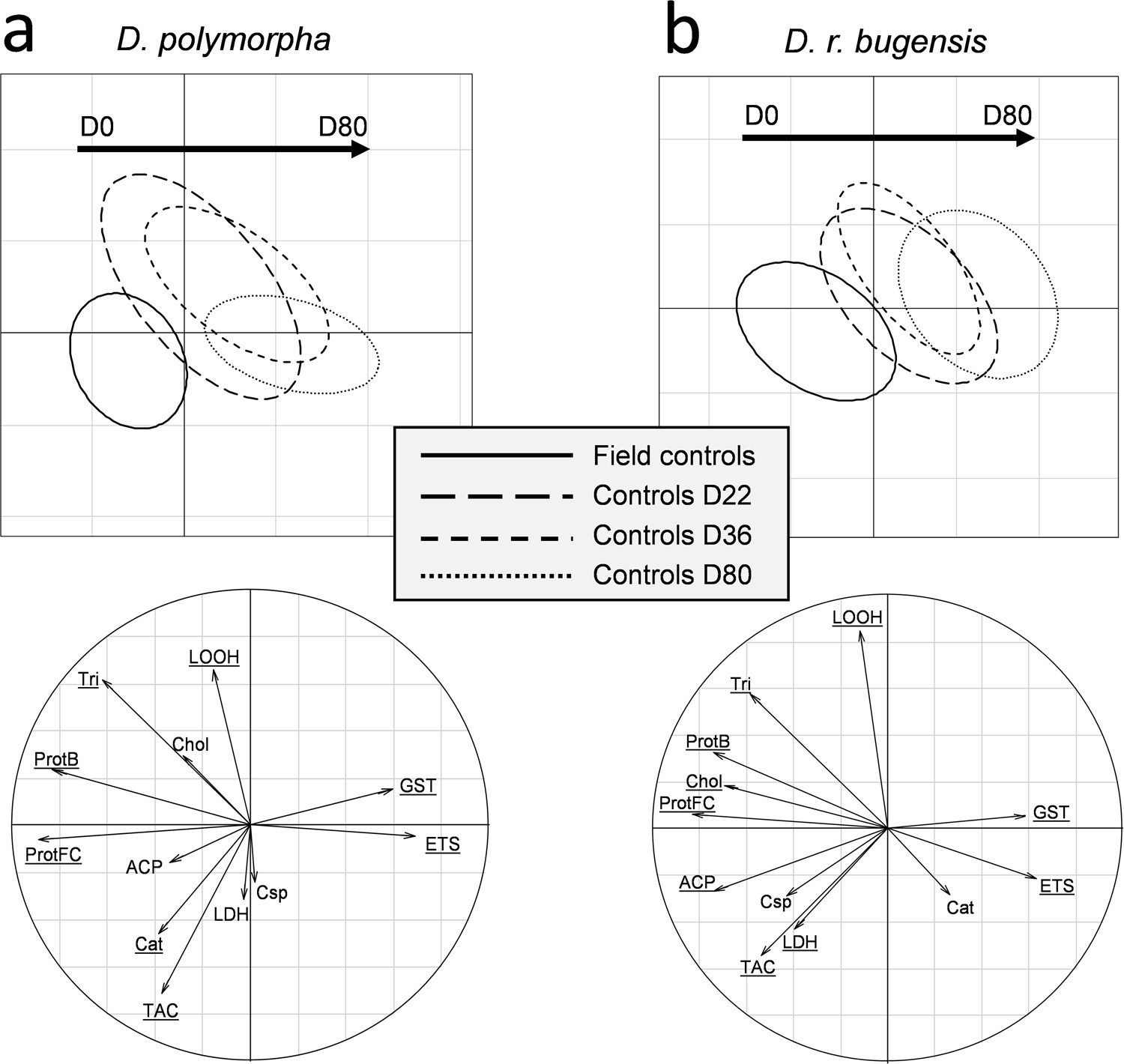

PLS-DA representing biomarker responses in the different controls along the experimentation. Responses of the two species are separated with D. polymorpha on the left (6a) and D. r. bugensis on the right (6b). For a given species, responses of all populations are confounded. Underlined biomarkers in the correlation circles correspond to the VIP (variable importance in the projection) that were higher than 0.8.
