Figure 1
From: Iron Biogeochemistry in the High Latitude North Atlantic Ocean

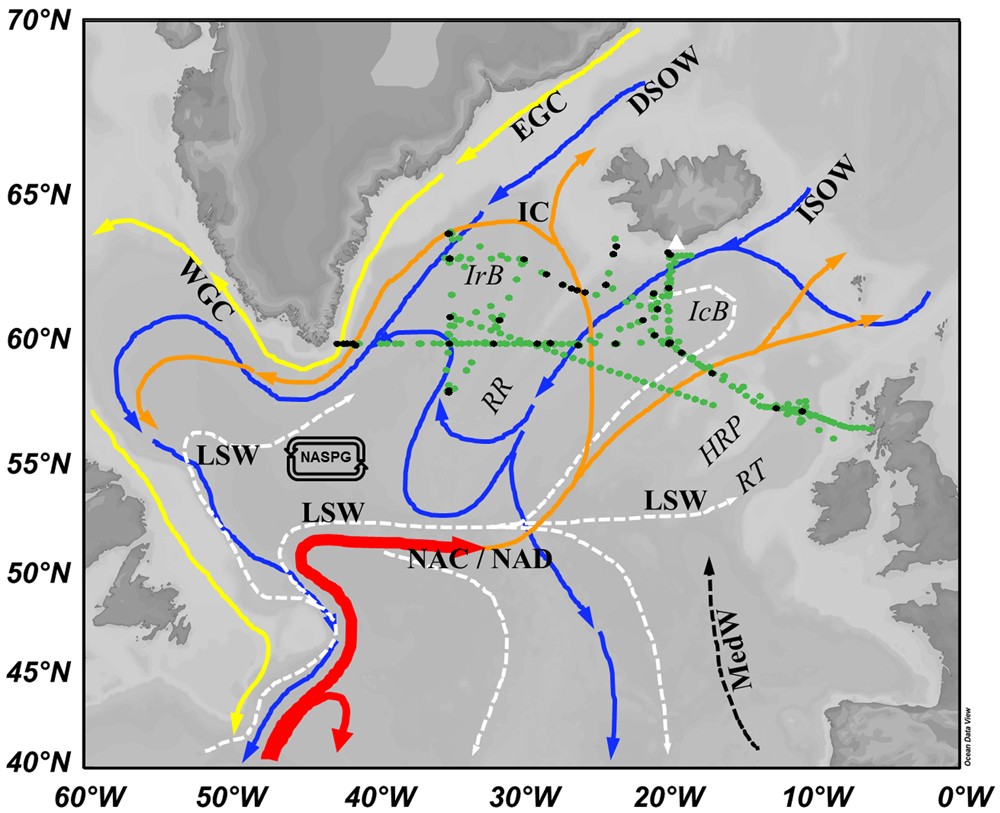

Schematic of the circulation in the North Atlantic, reproduced and modified from the IFM-GEOMAR SFB460 overlaid with the sampling stations of D350, 351 and 354 (magenta: CTD, cyan: underway) and the position of the Eyjafjallajökull volcano (white triangle). Red and yellow: Near-surface currents. Dashed black and white: Intermediate currents. Blue: Near-bottom currents. Abbreviations are: NAC/NAD: North Atlantic Current/Drift, LSW: Labrador Sea Water, ISOW: Iceland Scotland Overflow Water, DSOW: Denmark Strait Overflow Water, NASPG: North Atlantic Sub-Polar Gyre, RT: Rockall Trough, HRP: Hatton-Rockall Plateau, IC: Irminger Current, RR: Reykjanes Ridge, IRB: Irminger Basin and IB: Iceland Basin. Map was produced using Ocean Data View (Schlitzer, R., Ocean Data View, odv.awi.de, 2017).
