Figure 4

From: Hyperbaric oxygen reduces inflammation, oxygenates injured muscle, and regenerates skeletal muscle via macrophage and satellite cell activation

Figure 4

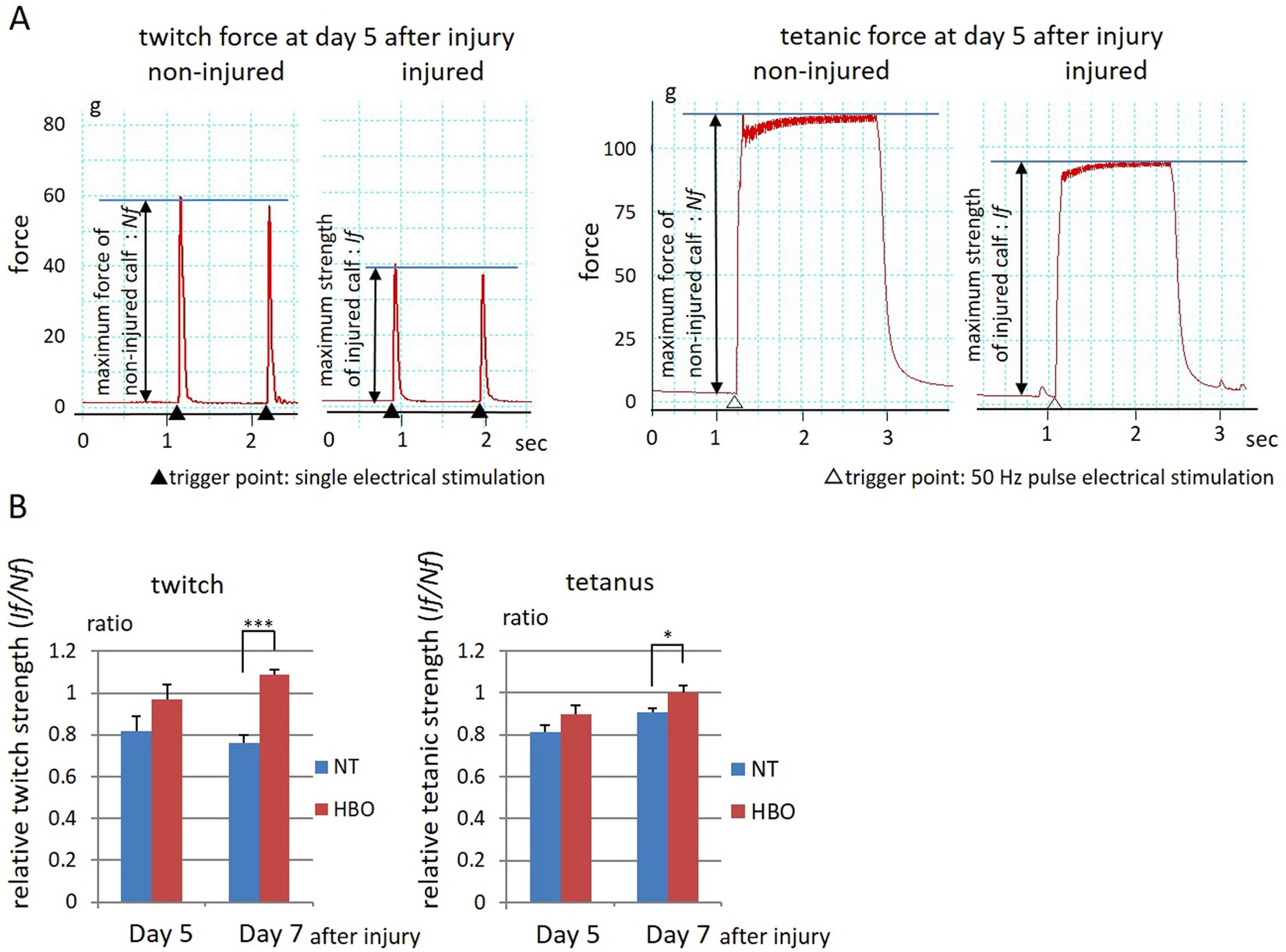

HBO increased the isometric tensile strength of the gastrocnemius muscle. (A) Twitch and tetanic forces were recorded and ratios of injured leg (If) to non-injured leg forces (Nf) were calculated. (B) The ratio of twitch muscle strength in the HBO group was higher than that in the NT group at 7 days. The maximum strength of tetanic forces in the HBO group was higher than that in the NT group at 7 days. n = 6. ***P < 0.001, *P < 0.05 using Student’s t test. Data are the mean ± SEM.
