Figure 5
From: Effect of in vitro storage duration on measured mechanical properties of brain tissue

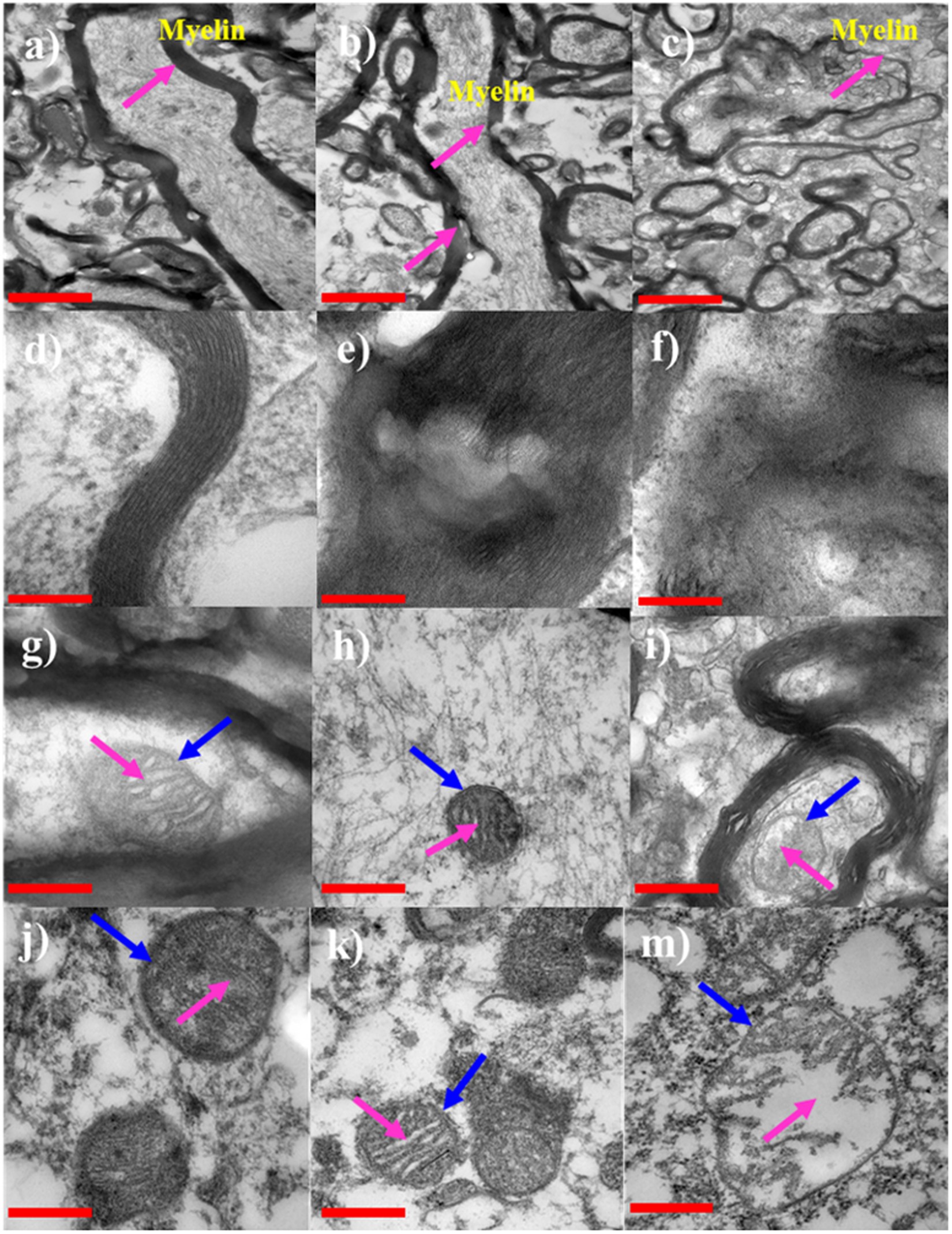

TEM micrograph of the cross-section of the myelinated axon from white matter, stored for 0 h (a), 1 h (b), and 4 h (c), scale bar 1 μm, and the corresponding high magnification images of the myelin sheaths (d,e,f, respectively), scale bar 200 nm. Note that the myelin sheath has a lamellated structure. TEM micrograph of mitochondria in axon (g,h,i) and mitochondria in astrocyte (j,k,m), scale bar 400 nm. Note the variation of cristae.
