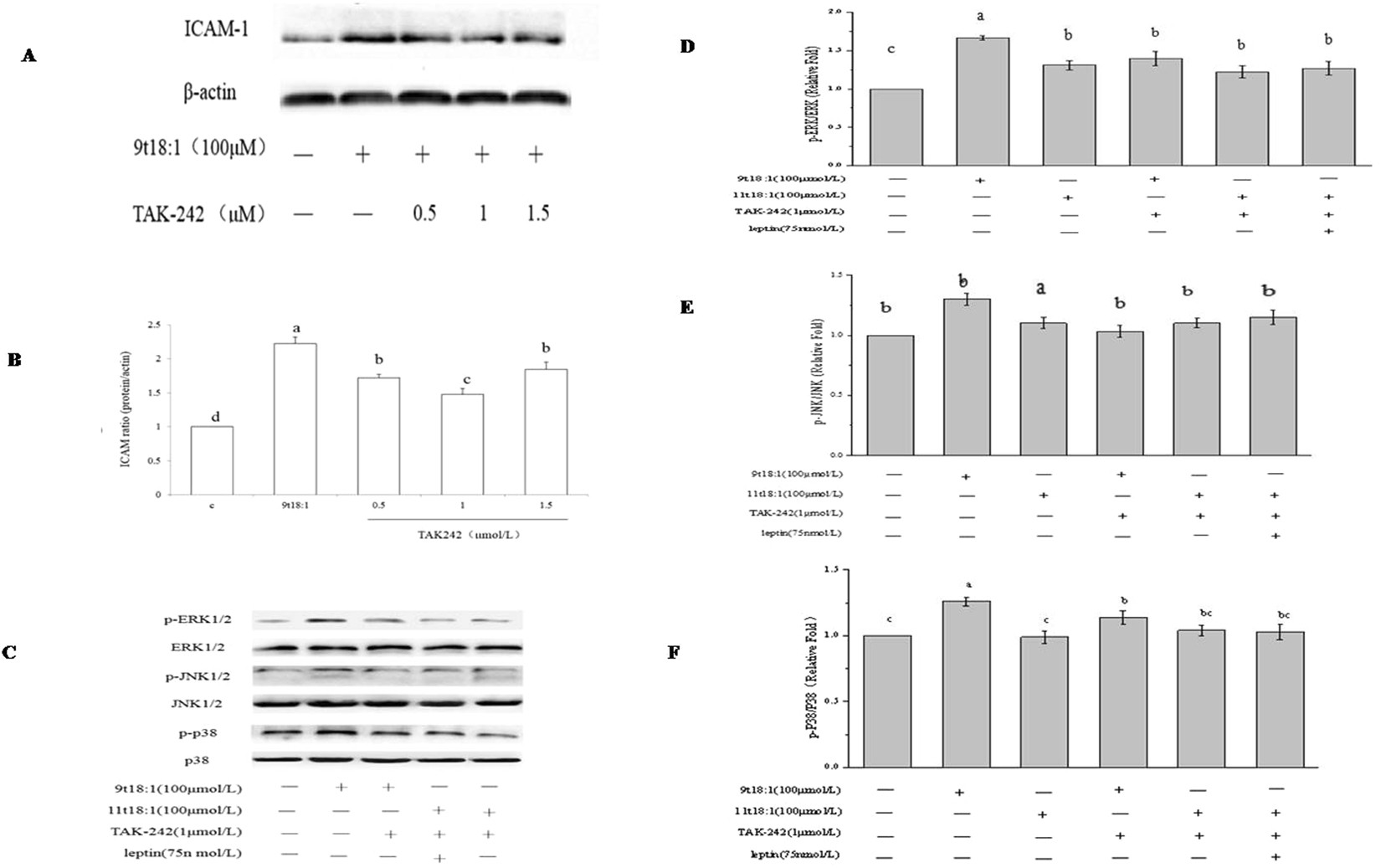

Figure 6
Effect of TAK242 on MAPKs phosphorylation in HUVECs treated with 9t18:1 and 11t18:1. (A) Effect of TAK242 on ICAM-1 expression. HUVECs were treated with TAK242 (0.5, 1, 1.5 μmol/L) for 30 min and then cultured with 9t18:1 for 24 h. (B) Effect of TAK242 on MAPKs phosphorylation in HUVECs treated with 9t18:1 and 11t18:1. HUVECs were treated with TAK242 (1 μmol/L) for 30 min and then cultured with TFA for 24 h. Values labeled with different letters in each set indicate significant differences (p < 0.05).
