Figure 13

From: Improvement in creep life of a nickel-based single-crystal superalloy via composition homogeneity on the multiscales by magnetic-field-assisted directional solidification

Figure 13

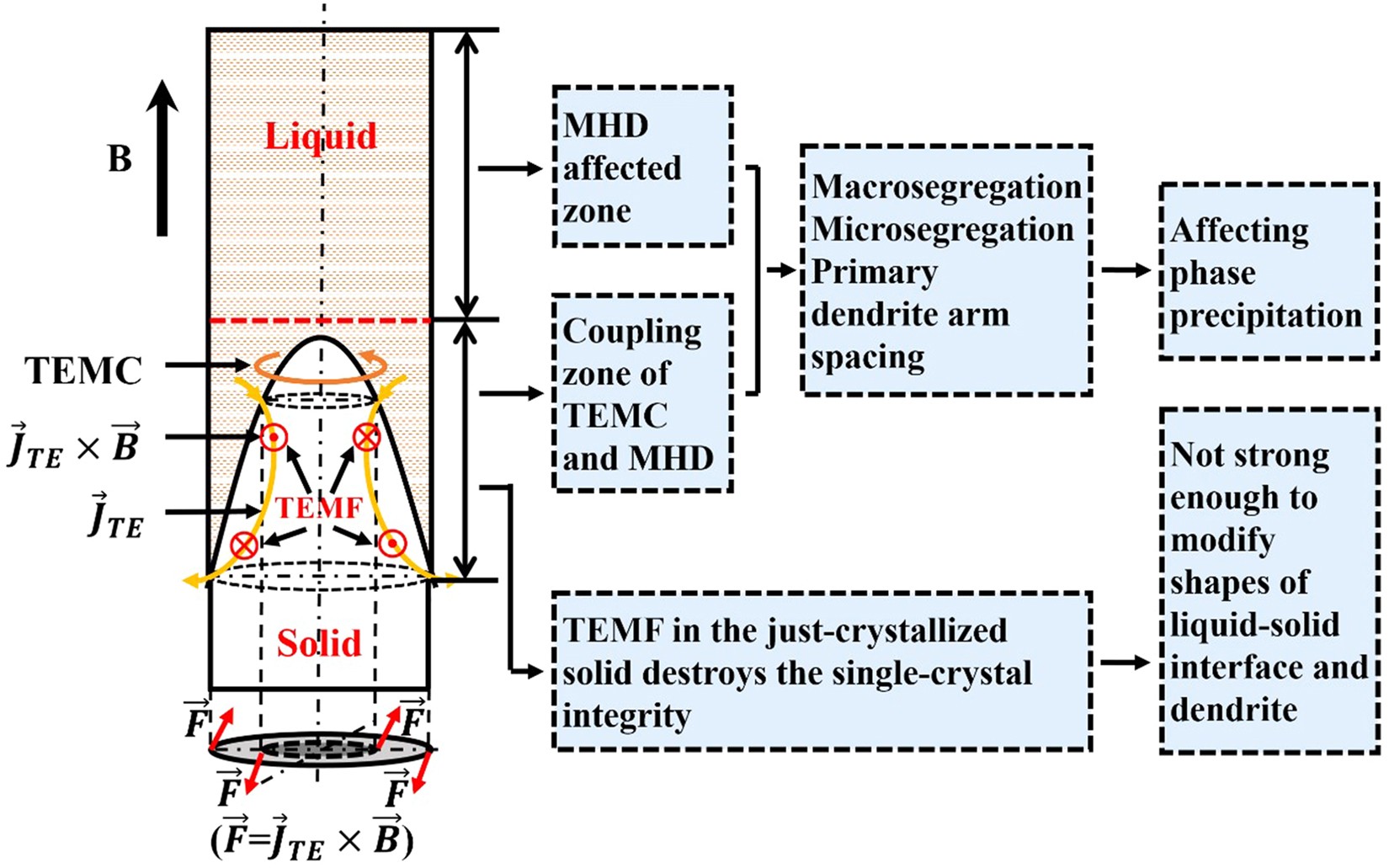

The illustration for the affected zone of the multiple effects from the static magnetic field and their influence on the structure and solute distribution. It should be emphasized that the TEMF in the just-crystalized solid are not strong enough to modify the liquid-solid interface shape and the dendrite morphologies in the present study.
