Figure 2
From: Collective responses in electrical activities of neurons under field coupling

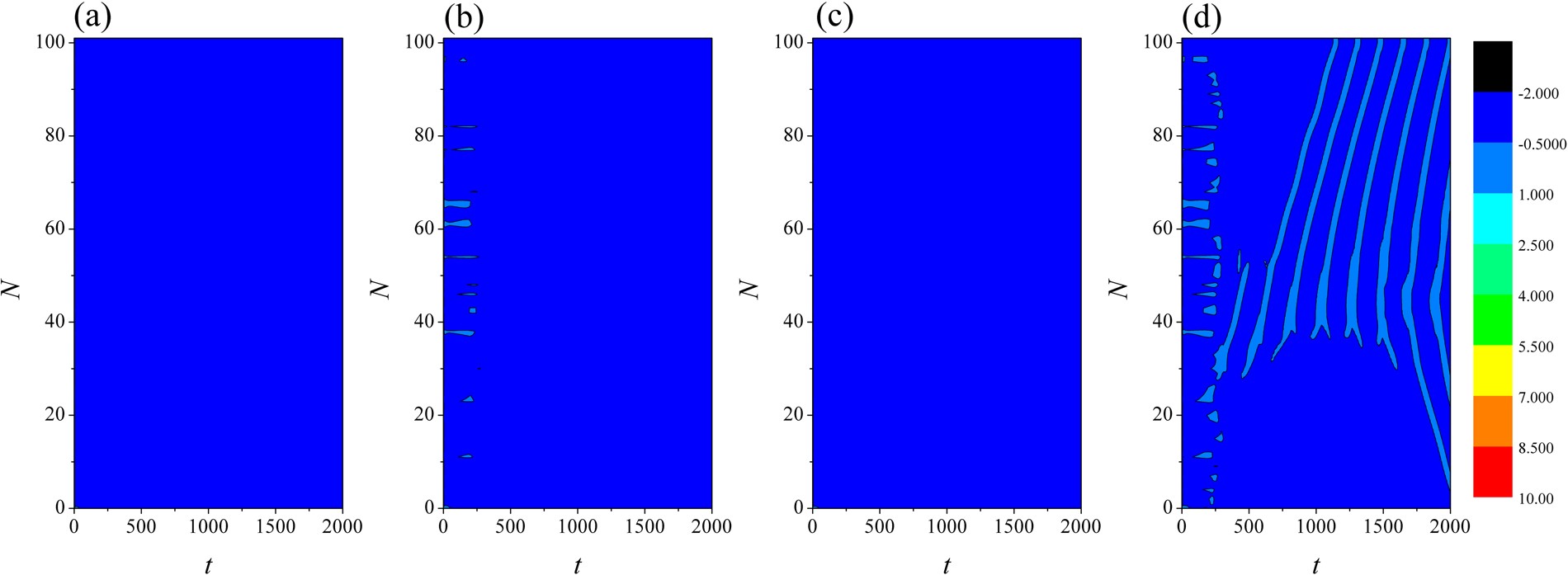

Developed spatial patterns of network and sampled time series are calculated when network is modulated by field coupling. Coupling intensity between nodes D = 0.5, W = 1.0, for (a) D0 = 0.0001, I = 1.0; (b) D0 = 0.00048, I = 1.0; (c) D0 = 0.0001, I = 1.2; (d) D0 = 0.00048, I = 1.2. The snapshots are shown in color scale.
