Figure 3
From: On the origins of strain inhomogeneity in amorphous materials

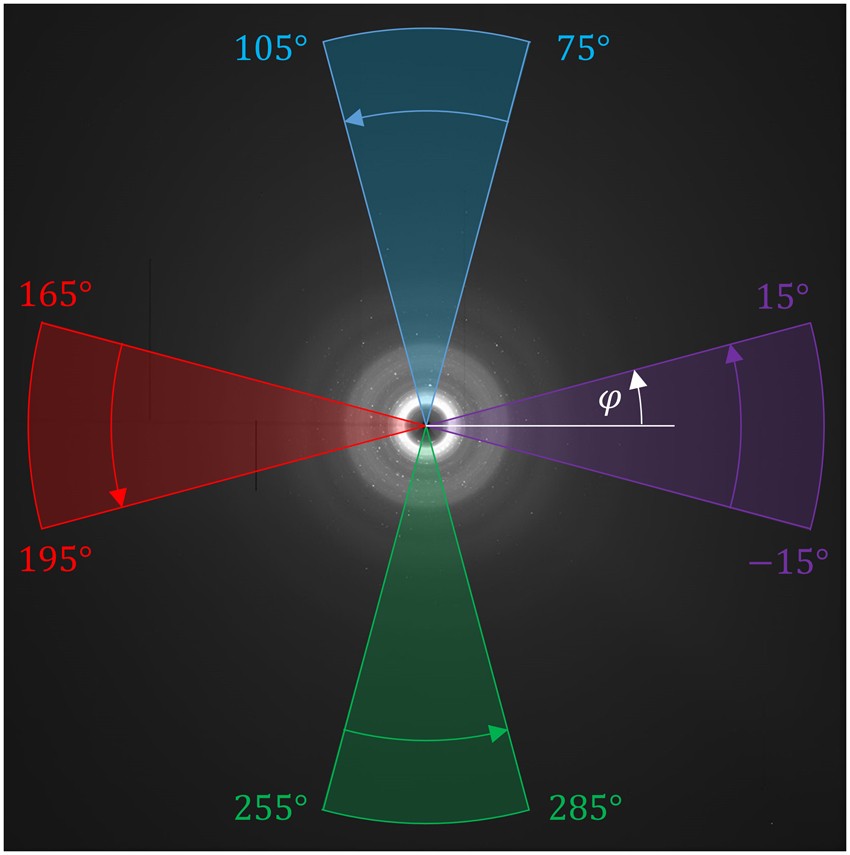

Amorphous silica diffraction pattern. The 2D diffraction pattern is azimuthally (φ) integrated over 30° to provide insight into the strain in the horizontal and vertical directions.
