Figure 8
From: Effect of secondary phase on the electromagnetic shielding effectiveness of magnesium alloy

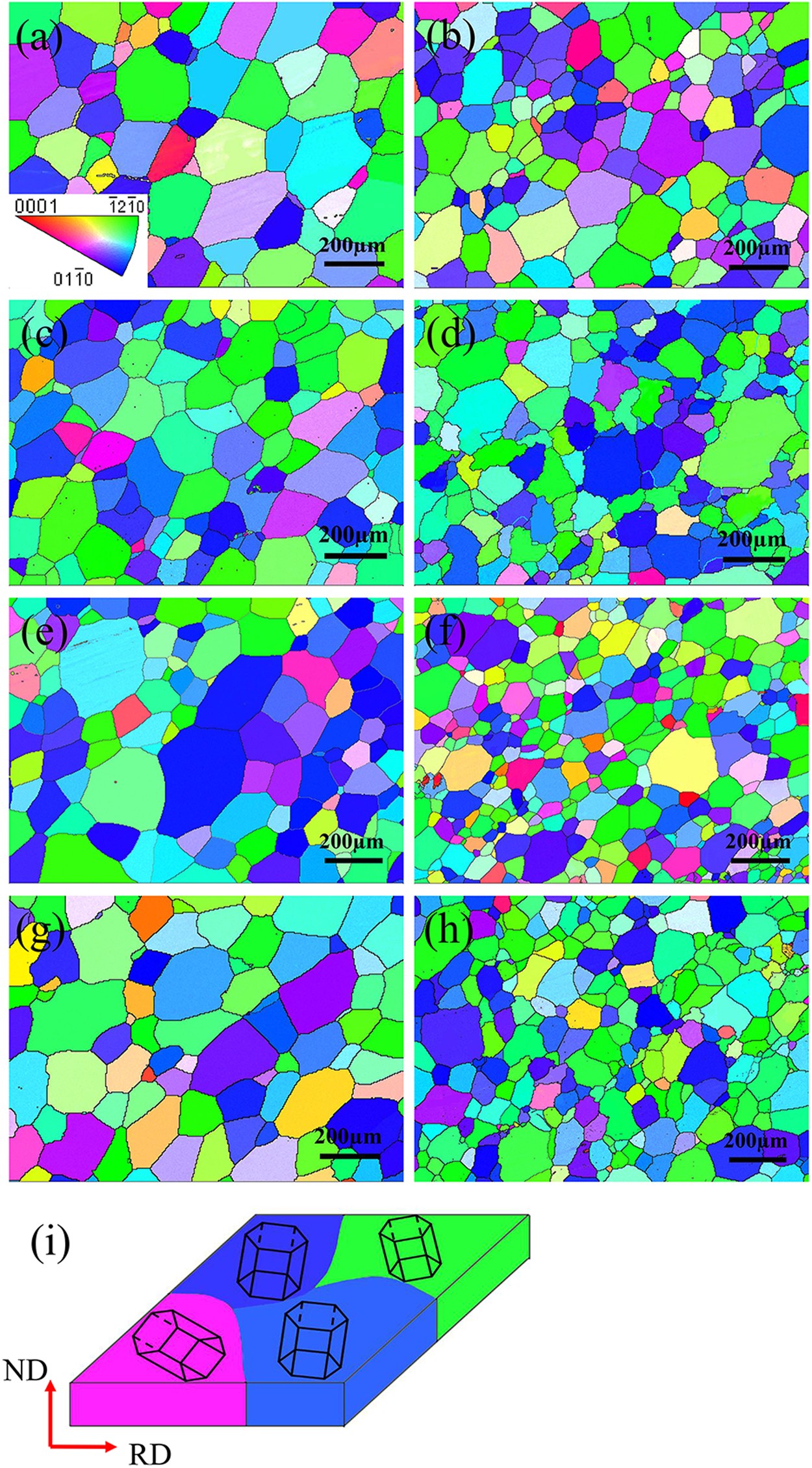

IPF images of the studied alloys: (a) Mg-3Zn 20% rolled and (b) 50% rolled aged for 25 h; (c) Mg-5Zn 20% rolled and (d) 50% rolled aged for 25 h; (e) Mg-3Sn 20% rolled and (f) 50% rolled aged for 35 h; (g) Mg-5Sn 20% rolled and (h) 50% rolled aged for 35 h; and (i) schematic of the grain orientation and microstructure of the alloy.
