Figure 2 | Scientific Reports

Figure 2

From: Chitin digestibility is dependent on feeding behaviors, which determine acidic chitinase mRNA levels in mammalian and poultry stomachs

Figure 2

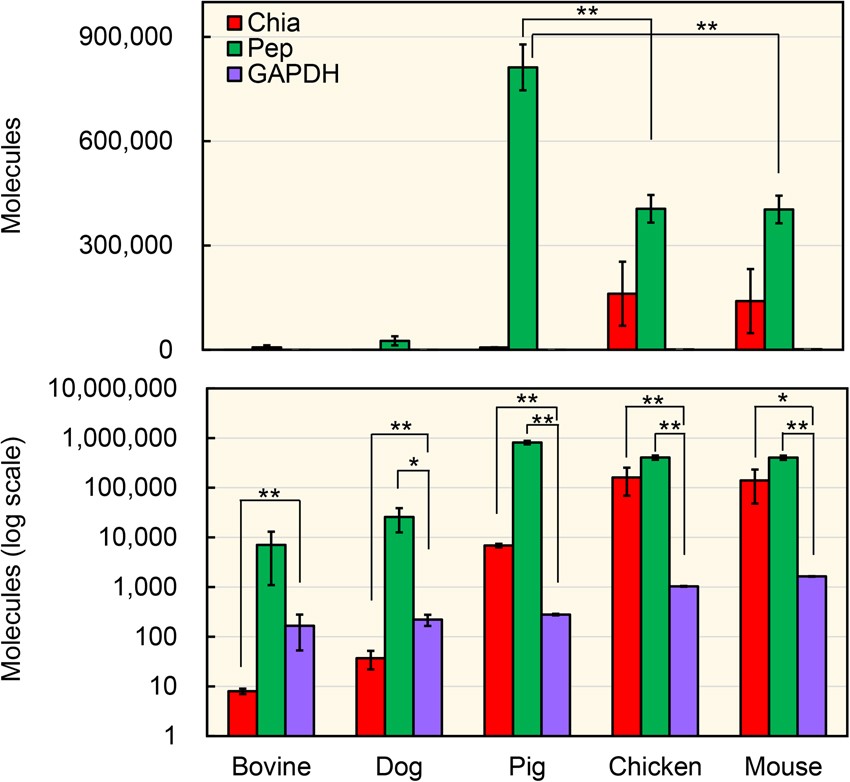

Chia mRNA is highly expressed in omnivores stomach tissue. Expression levels of Chia and gastric genes as well as GAPDH were quantified on the same scale by qPCR using the standard DNA (Supplementary Fig. S1) in bovine, dog, pig, chicken and mouse stomach tissues. Y axis represents molecules per 10 ng of total RNA. Pep, pepsinogen. The upper panel indicates the actual number, whereas the lower panel shows each value on logarithmic scale. Values represent mean ± SD conducted in triplicate. *p < 0.05, **p < 0.01.
