Figure 4
From: A facile synthesis of porous graphene for efficient water and wastewater treatment

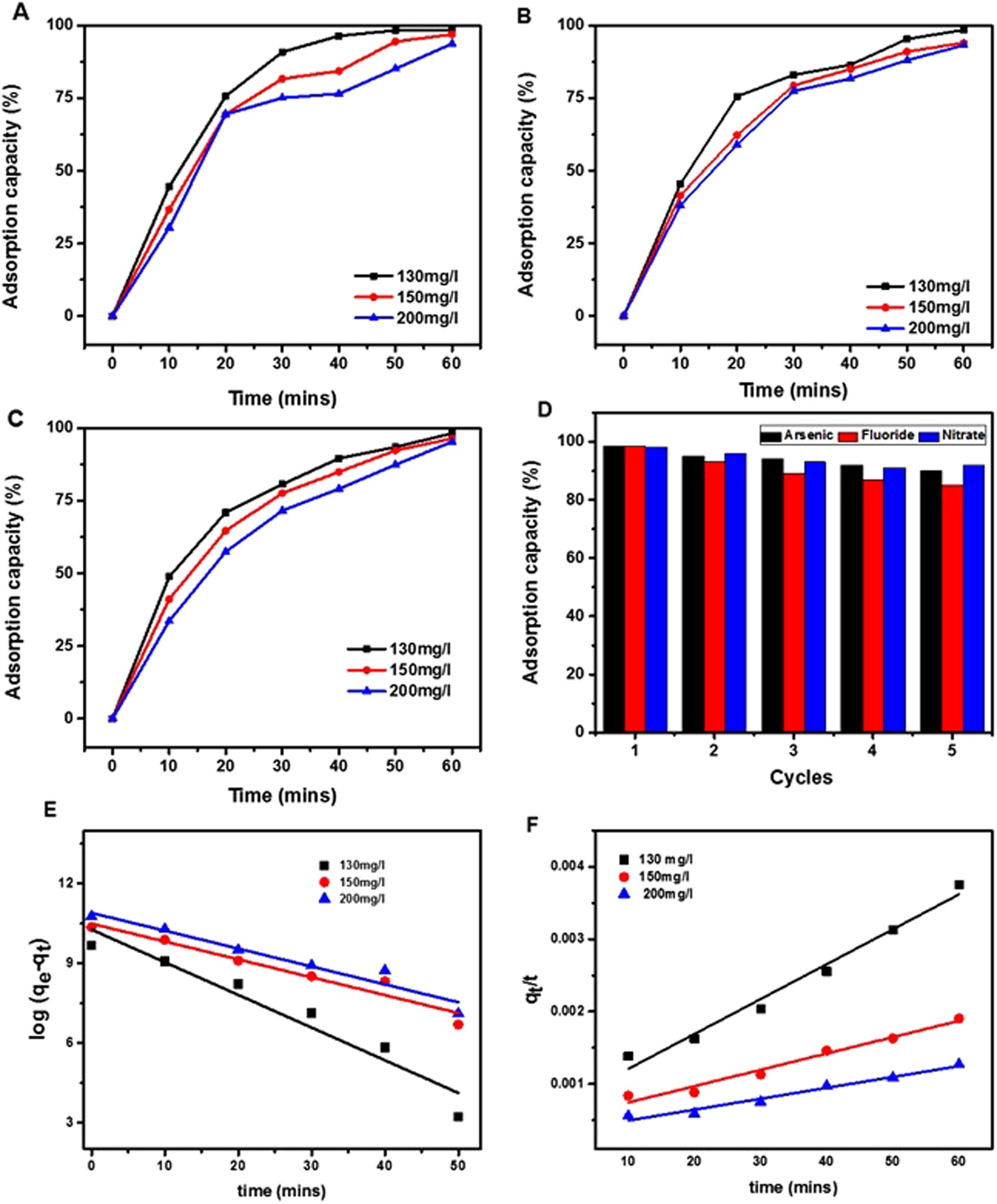

Contaminant ions adsorption properties. The time dependence of adsorption capacity of arsenic (A), fluoride (B) and nitrate (C) by PG at three different concentrations of 130 mg/l, 150 mg/l and 200 mg/l. (D) Recyclability of PG for the removal of arsenic, fluoride and nitrate. (E) Pseudo-first and (f) -second order models was found to fit the adsorption of arsenic (100 mg/l) on PG.
