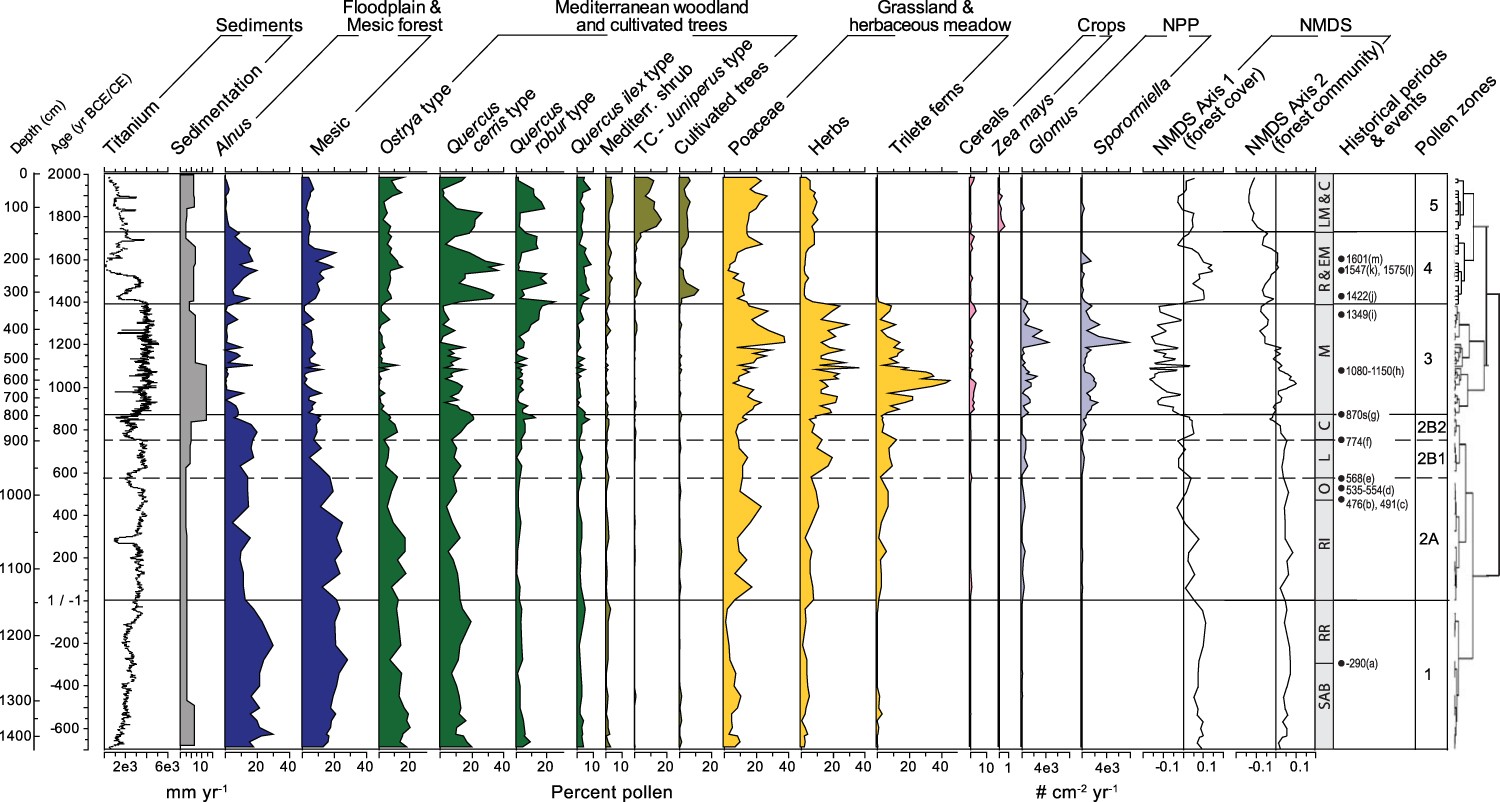

Figure 1

Selected sedimentary data, pollen types, non-pollen palynomorphs and non-metric multidimensional scaling (NMDS) scores from pollen data for Lago Lungo plotted against core depth and age (Common Era). Titanium obtained using XRF is reported in kilacounts per second. Summary pollen groups (e.g. Mesic) were aggregated on the basis of the NMDS ordination: Mesic taxa include: Ostrya, Fagus, Carpinus, Acer, Ulmus, Fraxinus excelsior, Betula; Mediterranean shrubs include: Fraxinus ornus, Pistacia, and Myrtus; Cultivated trees include Olea, Castanea and Juglans; Herbs include: Apiaceae, Plantago, Amaranthaceae, Trifolium, Galium, Polygonum, Salvia, Caryophyllaceae, Asteraceae, and Cichorieae; Poaceae includes Cyperaceae. The Q-mode cluster of samples—constrained by stratigraphic order—recognizes 5 main groups of samples, with group 2 further divided into three clusters. Historical periods associated with pollen zones are SAB—Sabini; RR—Roman Republican; RI—Roman Imperial; O—Ostragoth; L—Lombard; C—Carolingian; M—Medieval; R&EM—Renaissance and Early Modern; LM&C—Late Modern and Contemporary. Historical dates noted in the figure are (a) conquest of Manius Curius Dentatus and construction of Cava Curiata; (b) Last Roman emperor deposed; (c) Beginning Ostragoth occupation; (d) Gothic wars; (e) Lombard conquest; (f) Charlemagne conquest; (g) Land charter phase; (h) Hill-town charter phase; (i) Black Plague; (j–m) Canal construction phase.
