Figure 3
From: Heterologous pathway assembly reveals molecular steps of fungal terreic acid biosynthesis

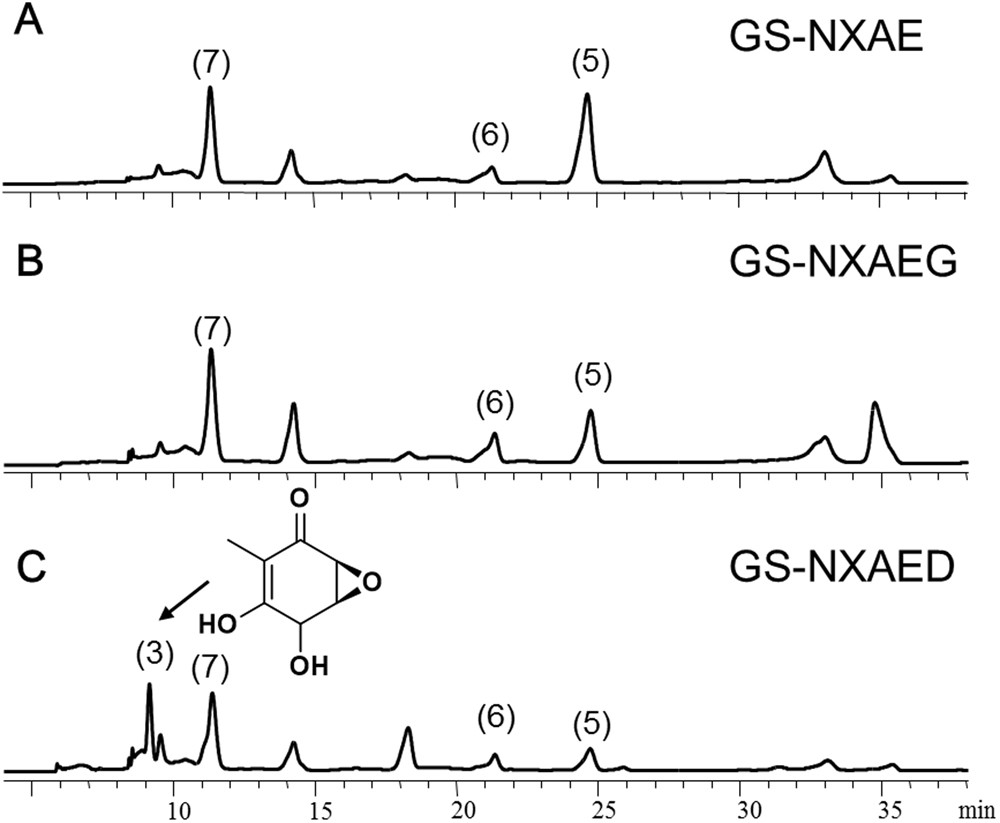

The HPLC chromatograms of organic extracts from culture broth. (A) Strain GS-NXAE; (B) strain GS-NXAEG; (C) strain GS-NXAED. For HPLC, samples were extracted from culture broth after methanol induction for 48 h and were analyzed for UV absorbance at 254 nm.
