Figure 7

From: Chitosan nanoparticles functionalized with β-cyclodextrin: a promising carrier for botanical pesticides

Figure 7

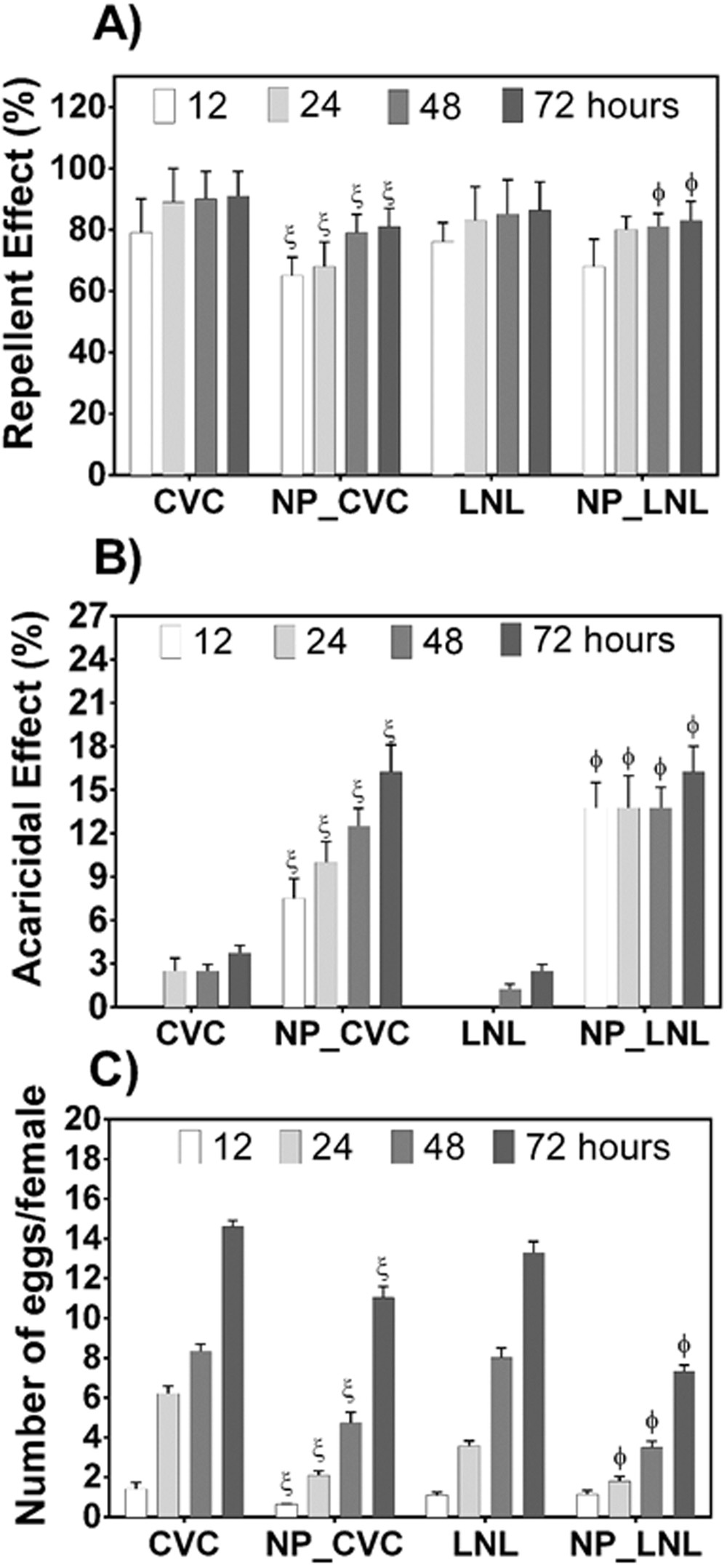

Biological effects of the botanical compounds (encapsulated or not) against the two-spotted spider mite (Tetranychus urticae), as a function of time. (A) Repellency effect, (B) acaricidal effect, and (C) effect on oviposition. A significance level of p < 0.05 was considered for the differences obtained for the same time; ξ* and ϕ* indicate significant differences relative to unencapsulated carvacrol and linalool, respectively.
