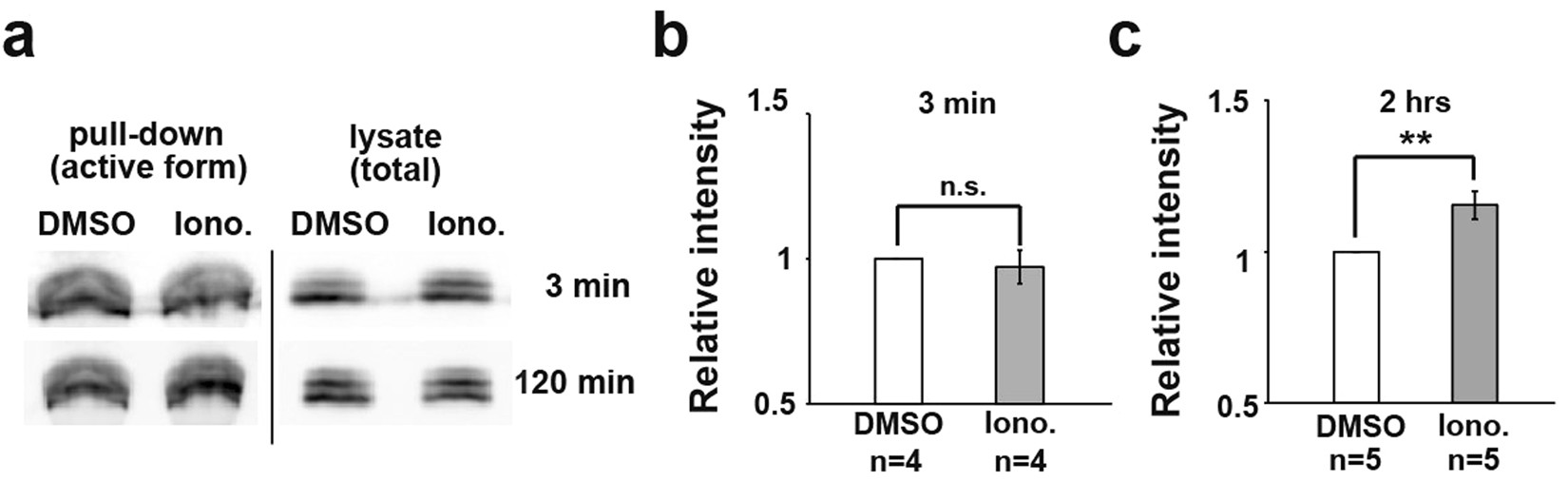

Figure 7
Ca2+ signalling regulates Rac1 activity. (a) Rac1 activity after Ionomycin (Iono.) treatment for 3 minutes and 2 hours. DMZ explants were dissected and treated with Ionomycin. DMSO was used as a control. (b) Rac1 activity after Ionomycin treatment for 3 minutes. The active Rac1 intensity with Ionomycin was normalized to the intensity in DMSO-treated samples. Each western sample was prepared from 35–40 DMZ explants. Error bars indicate s.e. ± Student’s t-test, ns: No significance. (c) Rac1 activity after Ionomycin treatment for 2 hours. Student’s t-test, **P < 0.005.
