Figure 6
From: Carbon fibers coated with graphene reinforced TiAl alloy composite with high strength and toughness

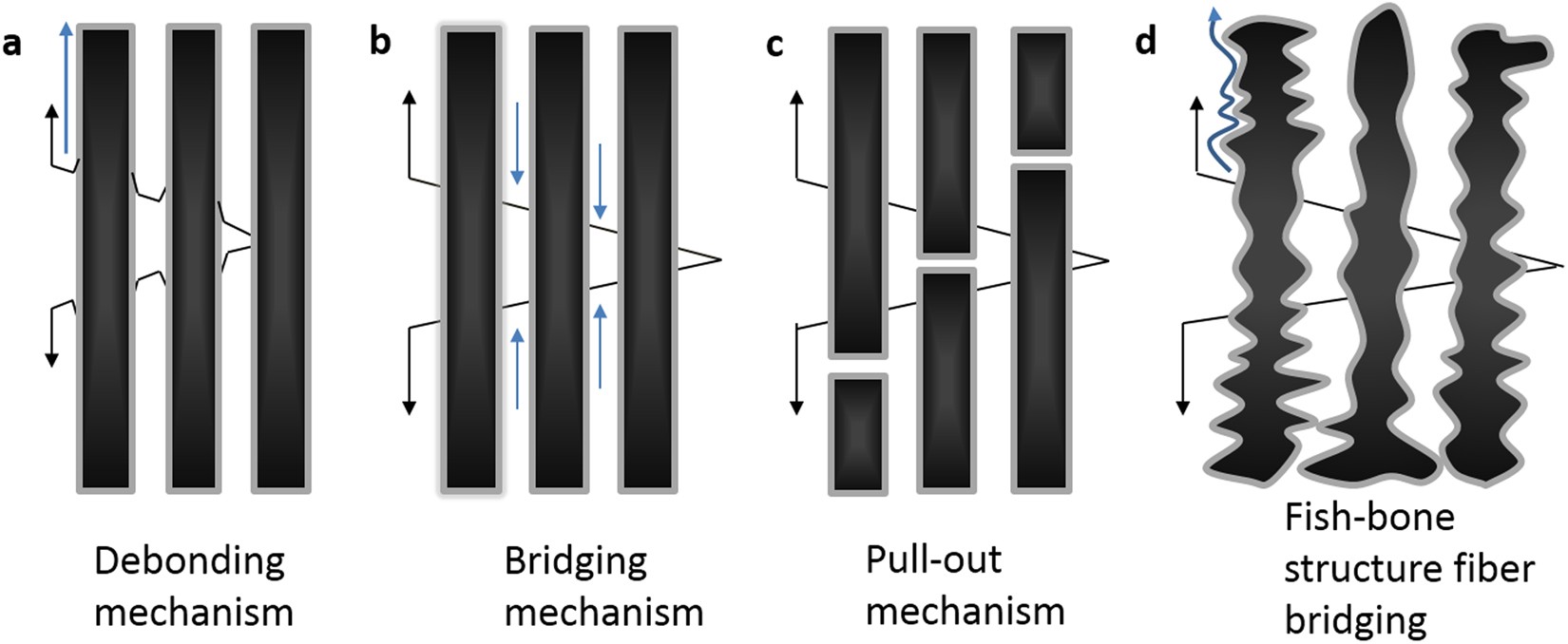

Sketch map of fiber toughening mechanism. (a) Interface debonding model, (b) bridging mechanism of intact fibers, (c) pull-out mechanism of broken carbon fibers (d) bridging model of fish-bone structure fibers.
