Figure 2
From: Micro-computed tomography for the quantification of blocked fibers in hemodialyzers

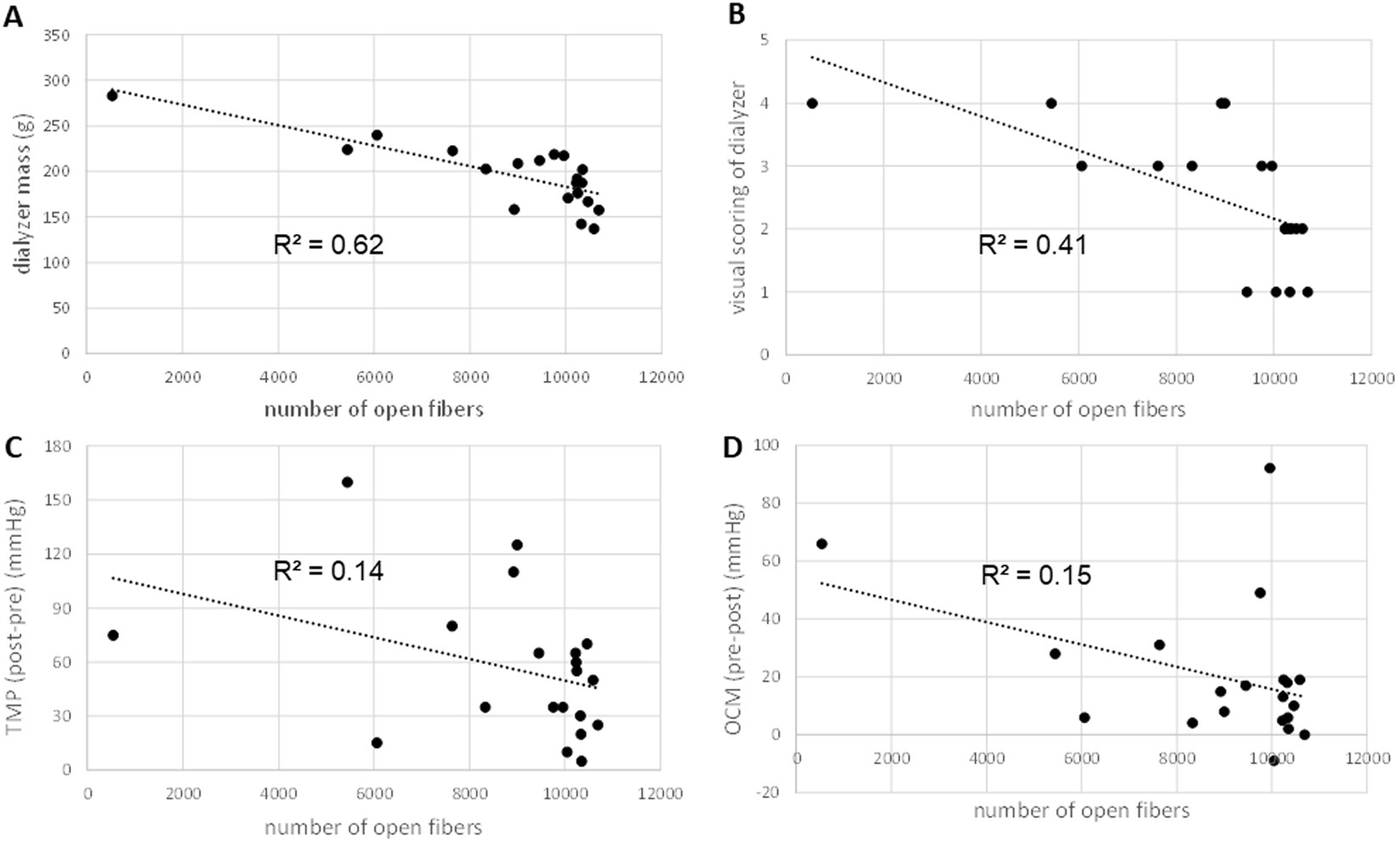

Associations between the number of fibers and a selection of different registered parameters: dialyzer dry mass (panel A), visual scoring of dialyzer (panel B), post minus pre dialysis TMP (panel C), and pre minus post dialysis OCM (panel D).
